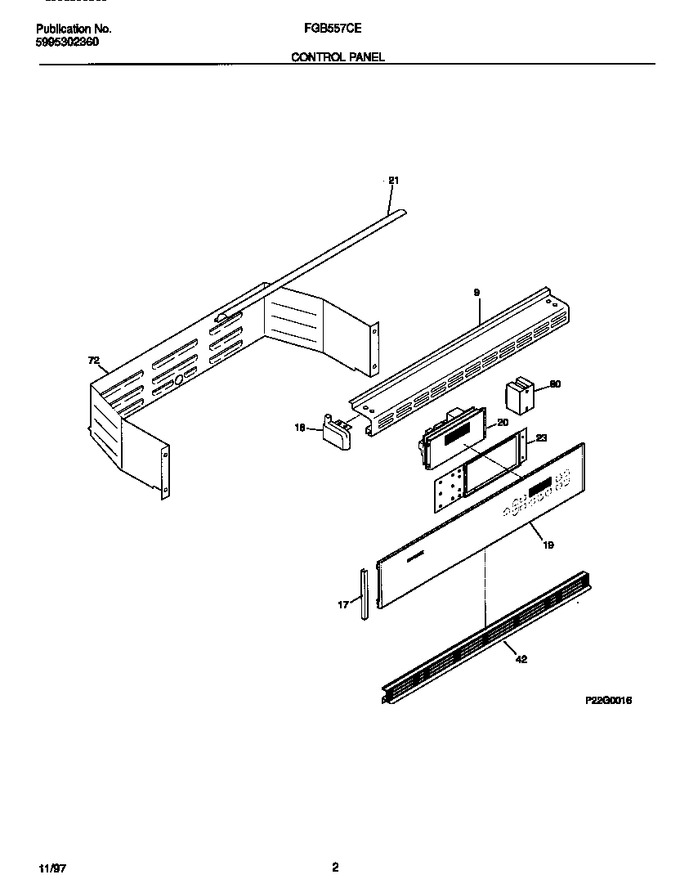

02 - Control Panel


03 - Burner


04 - Body


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5303308462		Trim-splasher, White		Appelez-nous	-
17	5303310384		Trim-end, (2)		Appelez-nous	-
18	5303310389		End Cap, White, Lh		Appelez-nous	-
18	5303310391		End Cap, White, Rh (not Illustrated)		Appelez-nous	-
19	318030701		Panel-control, White		Appelez-nous	-
20	318010800		Clock/timer, Electronic		Appelez-nous	-
21	5303271091		Trim-canopy/shield, White		Appelez-nous	-
23	318111610		Bracket-clock Mtg		Appelez-nous	-
42	5303310387		Trim-vent, White		Appelez-nous	-
72	5303210685		Wrapper-shield		Appelez-nous	-
*18040	5303300414		Spacer, Cork & Rubber				$ 13.18
*18041	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*18042	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl   (Replaces: 5303308458)				$ 14.18
80A	318111500		Relay,convection ,oven Light ,(2)		Appelez-nous	-
80B	318111700		Bracket-relay (not Illustrated)		Appelez-nous	-
80C	5303320666		Spacer-bracket Relay (not Illustrated)		Appelez-nous	-
