SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Burner


04 - Body


05 - Door

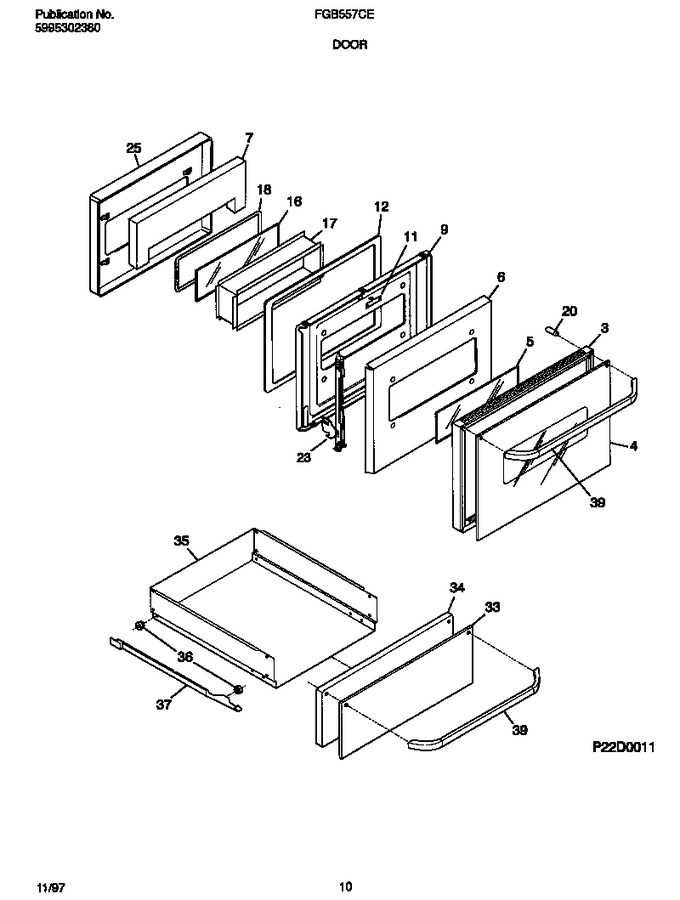

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303212560		Trim-oven Door, Black		Appelez-nous	-
4	5303302707		Glass-oven Door, White, Outer		Appelez-nous	-
5	5303016336		Glass-oven Door, Heat Barrier, Lower Oven		Appelez-nous	-
6	5303210005		Shield - Air Wash		Appelez-nous	-
7	5303308470		Insulation, Oven Door		Appelez-nous	-
9	318038600		Liner,oven Door		Appelez-nous	-
10	5303310510		Screw-handle, Drawer				$ 14.18
11	5301167830		Strike Plate		Appelez-nous	-
12	3205189		Seal-oven Door		Appelez-nous	-
16	5303210001		Glass-oven Door, Heat Barrier, Upper Oven		Appelez-nous	-
17	318139100		Spacer-glass, Upper Oven		Appelez-nous	-
18	3016263		Seal-rope, Upper Oven				$ 66.15
19	318139201		Collar-glass Mtg		Appelez-nous	-
20	5303210003		Spacer-handle Mtg, (2)		Appelez-nous	-
25	318048300		Liner-door Baffle		Appelez-nous	-
33	5303308464		Glass-drawer, Front		Appelez-nous	-
34	5303210010		Panel-inner Drawer		Appelez-nous	-
35	3051058		Drawer-utility		Appelez-nous	-
36	5303935079		Roller		Appelez-nous	-
39	318014301		Spacer-handle, White, (2) (not Illustrated)				$ 48.88
39	5303311217		Screw-handle, Door (not Illustrated)				$ 12.71
39	316091104		Handle-door, White, Oven		Appelez-nous	-
*18068	3202113		Button, Plug		Appelez-nous	-
*18069	08016432		Screw, Truss Head, 8-18 X 3/8, (4)		Appelez-nous	-
*18070	318122101		Bracket-glass		Appelez-nous	-
*18071	318139200		Collar-glass Mtg		Appelez-nous	-
*18072	5303271093		Reflector, Aluminum Foil		Appelez-nous	-
*18073	5303300414		Spacer, Cork & Rubber				$ 13.18
*18074	5303308456		Screw, 8-18 X 0.531, Door Frame				$ 10.06
*18075	5303316982		Tape, Seal, (3)		Appelez-nous	-
23A	318074100		Hinge, Oven Door, (2)		Appelez-nous	-
23B	3201899		Washer, Hinge Assy, (4) (not Illustrated)		Appelez-nous	-
37A	3203723		Rail,drawer ,lh		Appelez-nous	-
37B	3203722		Rail-drawer Rh (not Illustrated)		Appelez-nous	-
37C	5304414648		Screw, 10-24 X 1/4, Rail Mtg, Control Pnl (not Illustrated)   (Replaces: 5303308458)				$ 14.18

    View Diagram in Separate Window       Print Part List
