Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 69401-1 Tray, Styrofoam Mullion Appelez-nous -
2 69414-1 Seal, Mullion Tray Appelez-nous -
2 69562-1 Seal, Mullion Tray (front) Appelez-nous -
3 69106-2 Motor, Evaporator Fan Special Order $ 95.45

3 406062-1 Screw Appelez-nous -
4 400015-12 Screw Appelez-nous -
4 64856-1 Bracket, Fan Motor Appelez-nous -
5 69107-1 Blade, Evaporator Fan Appelez-nous -
6 420092-900 Washer, Spring Appelez-nous -
7 60608-2 Orifice, Fan Blade Appelez-nous -
8 68592-2 Tunnel, Air Appelez-nous -
8 66325-34 Seal, Air Tunnel----na Appelez-nous -
9 W11233072 Screw   (Replaces: 400015-31) In-Stock Immediately $ 12.62

10 66403-2 Cover, Evaporator Appelez-nous -
11 68946-1 Seal Appelez-nous -
11 69395-1 Bottom, Frz. Appelez-nous -
12 60438-31 Shelf Appelez-nous -
13 60313-1 Cup, Shelf Appelez-nous -
14 WP841180A Tray, Ice   (Replaces: 59281-2) In-Stock Immediately $ 41.00

15 60653-1 Pan, Ice Appelez-nous -
16 68307-1 Grommet, Water Entry Appelez-nous -
17 67557-1 Plug Button Appelez-nous -
18 68187-1 Cap, Connector Appelez-nous -
19 68387-1 Cap, Grommet Appelez-nous -
20 66480-5 Cover, Plenum Appelez-nous -
21 60414-36 Trim Appelez-nous -
22 66101-1 Stud, Shelf Appelez-nous -
22 400019-1 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

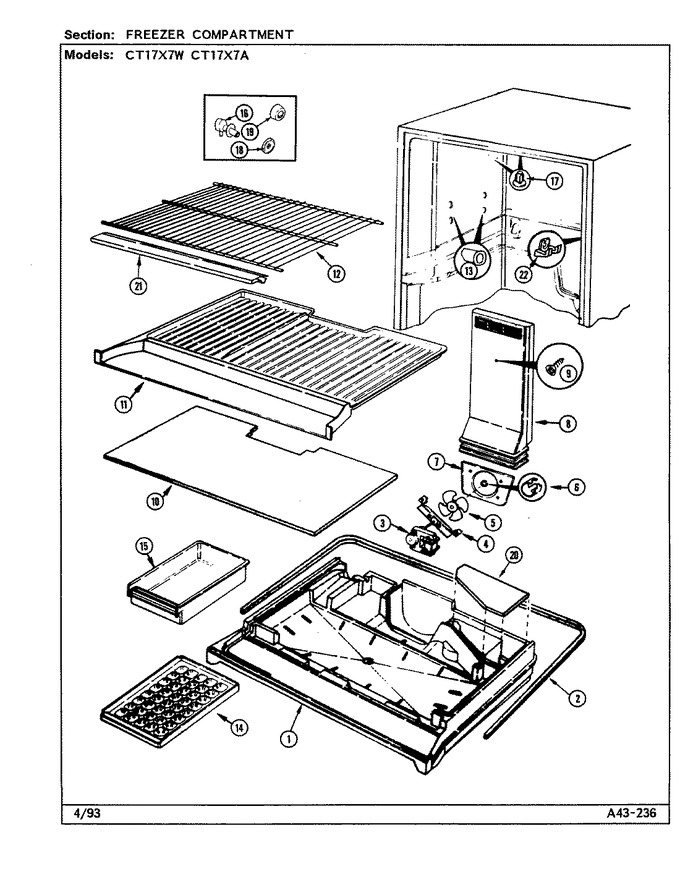

Diagram for CT17X7A (BOM: DC38A)
