SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

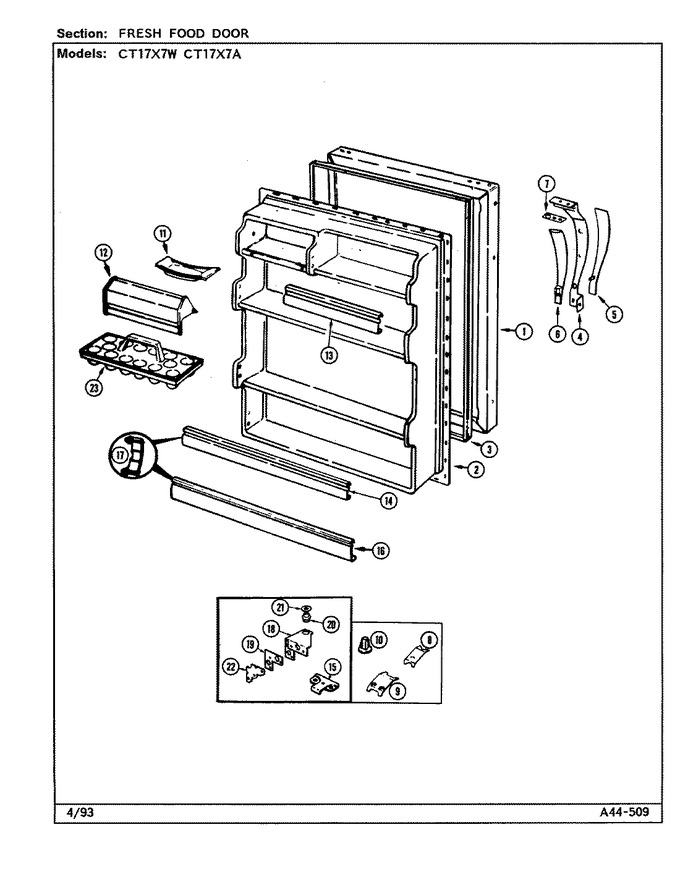

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-5-AM		Panel, Outer Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
2	69445-1		Liner, F.f. Door		Appelez-nous	-
3	70025-4		Gasket				$ 153.02
4	69300-2		Handle, Door		Appelez-nous	-
4	65275-57		Screw		Appelez-nous	-
5	68959-2		Insert		Appelez-nous	-
6	65275-53		Screw		Appelez-nous	-
6	60445-4		Insert, Handle (back)		Appelez-nous	-
7	69301-1		Shim, Handle		Appelez-nous	-
8	56209-3		Clip, Stop Screw		Appelez-nous	-
9	60123-2		Clip, Stop Screw		Appelez-nous	-
10	55782-6		Plug Button (almond)		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	69058-2		Door, Dairy		Appelez-nous	-
13	WP61003045		Trim, Shelf   (Replaces: 68832-56)				$ 129.55
14	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
15	65275-48		Screw		Appelez-nous	-
15	68987-1		Stop, Door		Appelez-nous	-
16	WP61003045		Trim, Shelf   (Replaces: 68832-55)				$ 129.55
17	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	69516-2		Hinge, Lower (blk)		Appelez-nous	-
18	403100-1		Screw		Appelez-nous	-
19	69510-1		Shim, Lower Hinge		Appelez-nous	-
20	69845-1		Pin, Lower Hinge				$ 44.55
21	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
22	403100-1		Screw		Appelez-nous	-
22	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
23	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
23	60066-1		Tray, Egg		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
