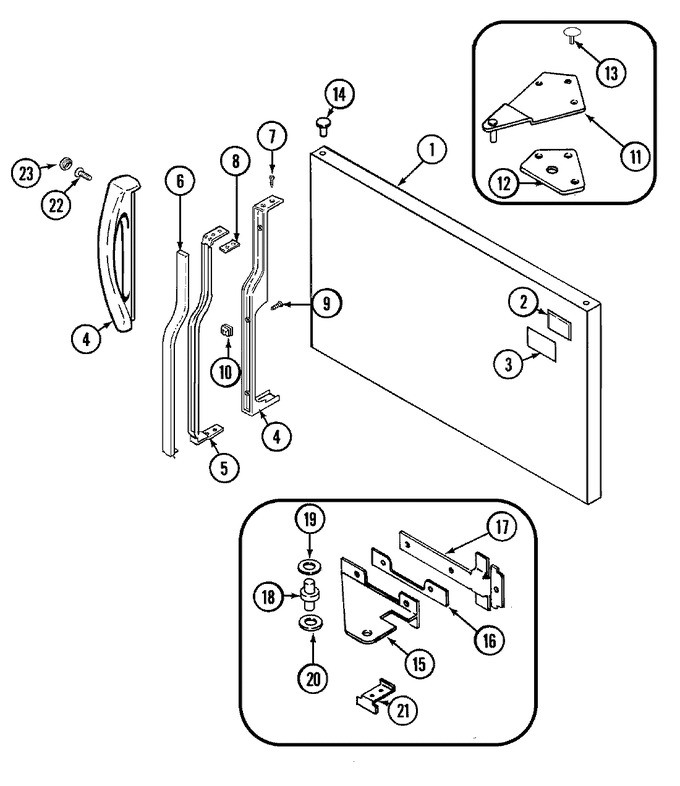

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-102-WW		Panel, Frz. Door (wht)	10	Appelez-nous	-
1	61001744		Panel, Frz. Door (wht)	14	Appelez-nous	-
2	66981-5		Bezel, Nameplate (wht)	10	Appelez-nous	-
3	66982-33		Insert, Nameplate	10	Appelez-nous	-
4	61001716		Handle, Door (wht)	14	Appelez-nous	-
4	69480-2		Plug Button, Handle Hole (wht)	10	Appelez-nous	-
4	70050-7		Handle, Frz. Door (wht)	10	Appelez-nous	-
5	70052-3		Frame, Handle	10	Appelez-nous	-
6	70053-6		Insert, Handle (wht)	10	Appelez-nous	-
7	65275-22		Screw	10	Appelez-nous	-
8	67934-1		Shim, Handle	10	Appelez-nous	-
9	415033-1		Screw	10	Appelez-nous	-
10	69743-1		Grommet	10	Appelez-nous	-
11	WP3-24838-048		Screw, Upper Hinge   (Replaces: 65275-86)	10			$ 7.00
11	53709-20		Hinge, Upper	10	Appelez-nous	-
12	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
13	56144-14		Plug Button, Upper Hinge (wht)	10	Appelez-nous	-
14	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
15	69514-2		Hinge, Center	10	Appelez-nous	-
15	65275-62		Screw	10	Appelez-nous	-
16	69515-1		Shim, Center Hinge	10	Appelez-nous	-
17	69419-1		Tapping Plate, Center Hinge	10	Appelez-nous	-
17	65275-61		Screw	10	Appelez-nous	-
18	69517-2		Pin, Center Hinge	10	Appelez-nous	-
19	67483-6		Washer	10	Appelez-nous	-
20	54233-1		Washer	10			$ 7.71
21	69256-2		Stop, Door	10	Appelez-nous	-
21	65275-48		Screw	10	Appelez-nous	-
22	65275-70		Screw	14	Appelez-nous	-
23	69922-1		Plug Button, Handle (wht)	14	Appelez-nous	-
