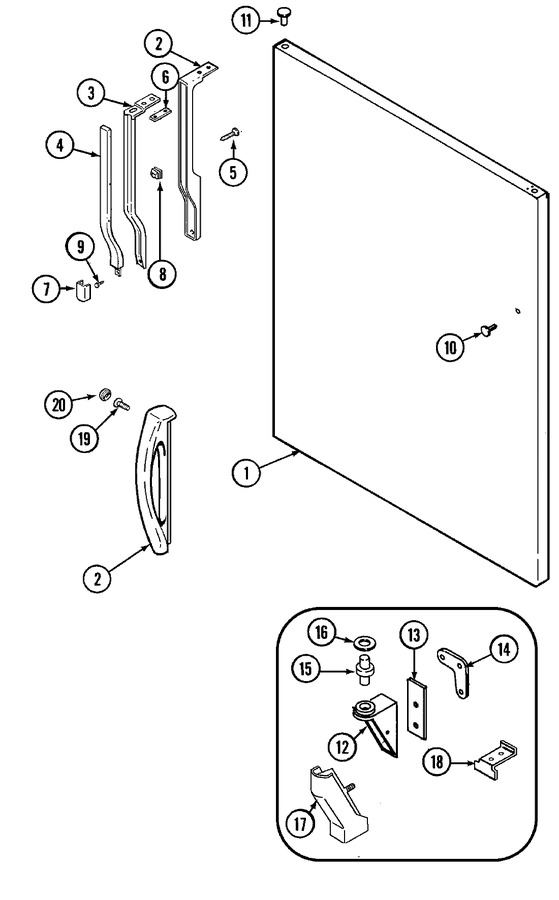

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61001742		Panel, F.f. Door (wht)	14	Appelez-nous	-
1	72342-3-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	61001717		Handle, Door (wht)	14	Appelez-nous	-
2	70051-3		Handle, F.f. Door (wht)	10	Appelez-nous	-
2	65275-22		Screw	10	Appelez-nous	-
3	70052-1		Frame, Handle	10	Appelez-nous	-
4	70053-18		Insert, Handle (wht)	10	Appelez-nous	-
5	415033-1		Screw	10	Appelez-nous	-
6	67934-1		Shim, Handle	10	Appelez-nous	-
7	70058-2		End Cap, Handle (wht)	10	Appelez-nous	-
8	69743-1		Grommet	10	Appelez-nous	-
9	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
10	67678-2		Plug Button (wht)	10	Appelez-nous	-
10	69480-2		Plug Button, Handle Hole (wht)	10	Appelez-nous	-
11	67634-2		Plug Button, Hinge Cup (wht)	10	Appelez-nous	-
12	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
12	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
13	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
14	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
14	65275-59		Screw	10	Appelez-nous	-
15	69845-1		Pin, Lower Hinge	10			$ 44.55
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
17	68978-4		Cover, Lower Hinge (wht)	10	Appelez-nous	-
18	69256-2		Stop, Door	10	Appelez-nous	-
18	65275-48		Screw	10	Appelez-nous	-
19	65275-70		Screw	14	Appelez-nous	-
20	69922-1		Plug Button, Handle (wht)	14	Appelez-nous	-
