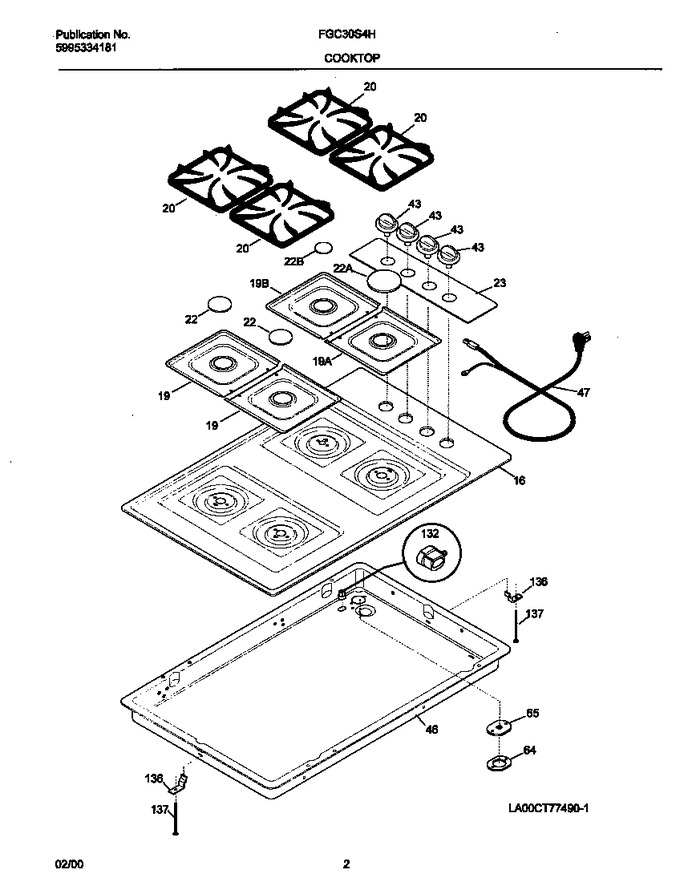

03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318159141		Panel-main Top,stainless		Appelez-nous	-
19	318167903		Pan-burner		Appelez-nous	-
19	318167905		Pan-burner,black		Appelez-nous	-
19	318167904		Pan-burner,black		Appelez-nous	-
20	316085305		Grate,(4)		Appelez-nous	-
22	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22	316213500		Cap-burner,black ,mid Lf &cr   (Replaces: 318076410)				$ 43.23
22	318076400		Cap-burner,black ,small Rr & Lr				$ 25.66
23	318021600		Panel-control		Appelez-nous	-
43	318164721		Knob,temp Control		Appelez-nous	-
46	318156000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
64	5303304033		Retainer/bracket		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
*49600	318047105		Wiring Diagram		Appelez-nous	-
*49601	318167999		Pan-burner		Appelez-nous	-
*49602	5303300195		Screw,10-32 X 0.375 ,terminal Block ,(2)		Appelez-nous	-
*49603	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*49604	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*49605	5303311532		Screw, Back		Appelez-nous	-
*49606	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
*49607	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
