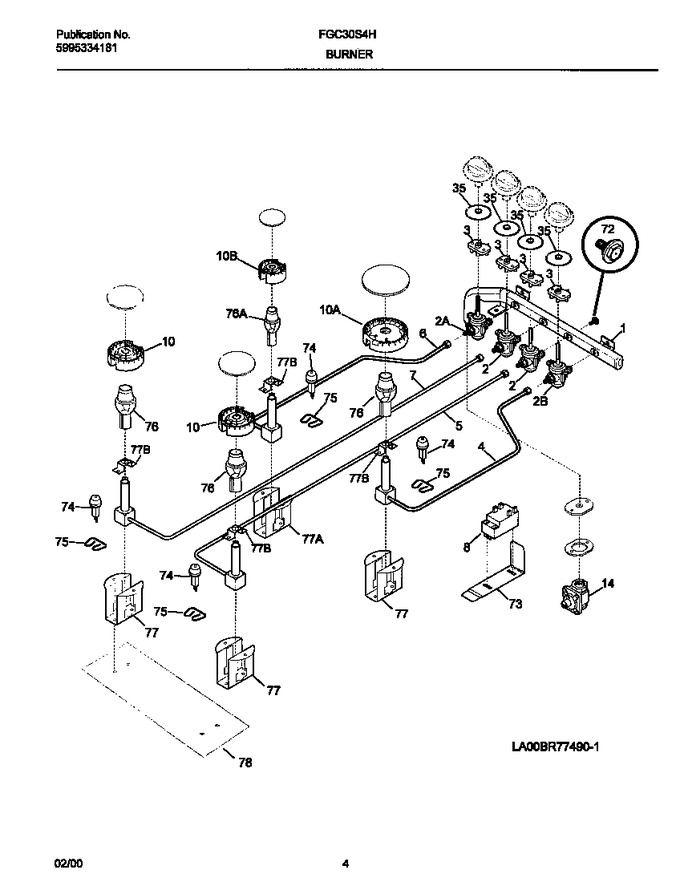

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177003		Manifold Pipe		Appelez-nous	-
2	318087001		Valve-top Burner				$ 204.59
2	318087040		Valve-top Burner				$ 284.34
2	5303935042		Valve-top Burner, 2-position, (3)				$ 175.25
3	316032002		Switch-ignitor, (4)				$ 63.46
4	318167714		Tube-burner,fr		Appelez-nous	-
5	318167700		Tube,burner ,lf				$ 210.05
6	318167702		Tube,burner ,rr				$ 213.83
7	318167701		Tube,burner ,lr				$ 233.00
8	5304505695		Spark Module   (Replaces: 5303280394)			Immediately	$ 68.16
10	318148001		Burner-top Mid,9100btu ,lf & Lr				$ 112.88
10	318148000		Burner-top Small,5000btu ,rr				$ 252.58
10	318148002		Burner-top,large ,13000 Btu ,large Rf				$ 144.64
14	5308007974		Regulator-pressure				$ 309.02
35	318146300		Bushing		Appelez-nous	-
72	5303323141		Screw Valve <1/4-20x 5/16		Appelez-nous	-
73	318024200		Bracket, Spark Module		Appelez-nous	-
74	318148700		Ignitor Gourmet Assy				$ 62.19
75	318148800		Clip,electrode				$ 68.57
76	318167801		Mid & Large Mixing Tube,mid & Large				$ 98.60
76	318167800		Small Mixing Tube,small Rr & Lr				$ 78.33
77	318112000		Bracket-burner Mtg				$ 51.14
77	318112010		Bracket-burner Mtg,mid & Large		Appelez-nous	-
77	318180900		Bracket				$ 8.56
78	318160900		Deflector		Appelez-nous	-
*49608	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
*49609	318127407		Lp Kit		Appelez-nous	-
*49610	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*49611	5303311532		Screw, Back		Appelez-nous	-
*49612	5304403558		Screw,10-16 X 0.250		Appelez-nous	-
