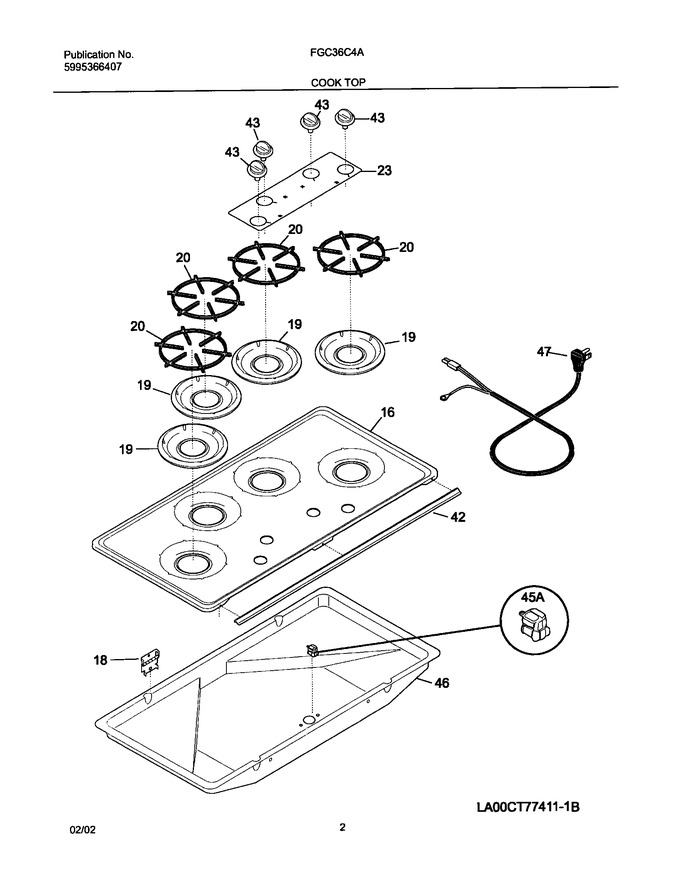

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318159314 | Main Top,bisque |
|
- | |||||
| 18 | 318074310 | Hinge-main Top, (2) |
|
$ 51.98 | |||||
| 19 | 318067300 | Pan,burner ,(4) |
|
- | |||||
| 20 | 316040807 | Grate,black ,(4) |
|
- | |||||
| 23 | 318021702 | Panel,control |
|
- | |||||
| 42 | 5303311316 | Trim,vent ,front |
|
- | |||||
| 43 | 318196150 | Knob,control ,black |
|
- | |||||
| 46 | 318077113 | Burner Box |
|
- | |||||
| 45A | 5304513507 | Strain Relief (Replaces: 3201437) |
|
$ 9.10 | |||||
| F47 | 5303311311 | Cord,electric Power |
|
- | |||||
| NI | 5303311532 | Screw,6-32 X 1/4`` ,back |
|
- | |||||
| NI | 5304453707 | Screw, 8-32 X 3/8, (6) (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| NI | 5303311306 | Screw,8-18 X 0.375 |
|
- |
