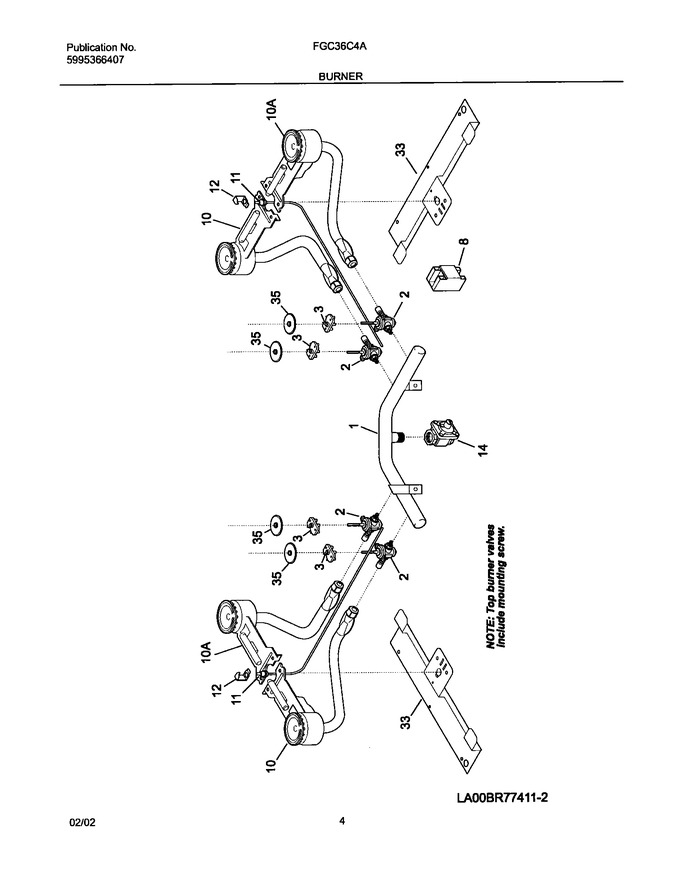

05 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318177102 | Manifold Pipe |
|
- | |||||
| 12 | 3016993 | Retainer-ignitor |
|
- | |||||
| 33 | 5303311317 | Bracket-burner Mtg, (2) |
|
- | |||||
| 35 | 318146300 | Bushing |
|
- | |||||
| F10 | 318176412 | Burner,top ,lf & Rr |
|
- | |||||
| F10A | 318176413 | Burner,top ,rf & Lr |
|
- | |||||
| F11 | 318148503 | Ignitor-top Burner |
|
- | |||||
| F14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| F2 | 318087012 | Valve,top Burner |
|
- | |||||
| F3 | 316032001 | Switch-ignitor (4) |
|
$ 69.35 | |||||
| F8 | 5304518635 | Module,spark (Replaces: 316135700) |
|
$ 87.21 | |||||
| NI | 5303311532 | Screw,6-32 X 1/4`` ,back |
|
- | |||||
| NI | 5303323141 | Screw,valve Mtg ,1/4-20 X 5/16 |
|
- | |||||
| NI | 318024201 | Bracket,spark Module |
|
$ 9.08 | |||||
| NI | 5303324191 | Washer,flat |
|
- | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303311306 | Screw,8-18 X 0.375 |
|
- |
