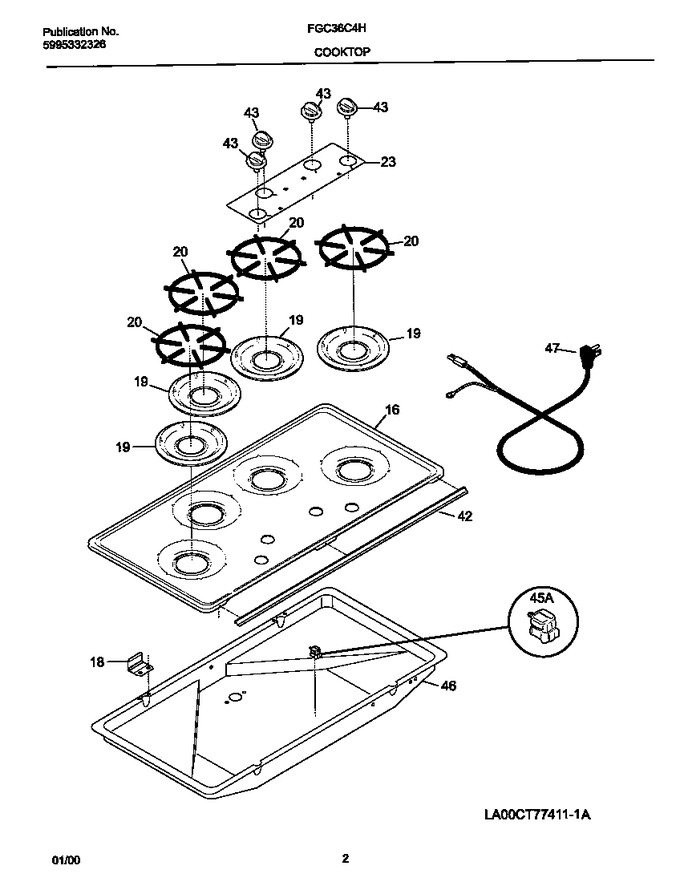

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 318159313 | Main Top, Chrome |
|
- | |||||
| 18 | 318074310 | Hinge-main Top, (2) |
|
$ 51.98 | |||||
| 19 | 318067300 | Pan,burner ,(4) |
|
- | |||||
| 20 | 316040807 | Grate, (4) |
|
- | |||||
| 23 | 318021700 | Panel-control |
|
- | |||||
| 42 | 5303311316 | Trim-vent |
|
- | |||||
| 43 | 318164705 | Knob,temp Control |
|
- | |||||
| 45 | 5304513507 | Strain Relief (Replaces: 3201437) |
|
$ 9.10 | |||||
| 46 | 318077111 | Burner Box |
|
- | |||||
| 47 | 5303311311 | Cord,electric Power |
|
- | |||||
| *32720 | 318068140 | Use & Care Guide |
|
- | |||||
| *32721 | 318174300 | Box & Grate Assy |
|
- | |||||
| *32722 | 5303311306 | Screw,8-18 X 0.375 |
|
- | |||||
| *32723 | 5304453707 | Screw, 8-32 X 3/8, (6) (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| *32724 | 5303311532 | Screw, Back |
|
- |
