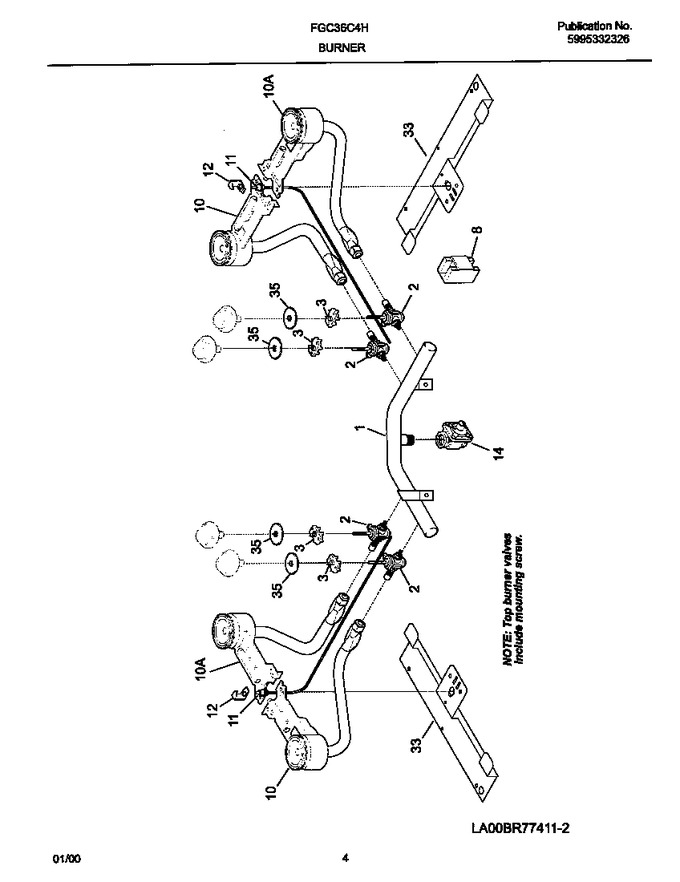

03 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017002 | Manifold Pipe |
|
- | |||||
| 2 | 318087030 | Valve-top Burner |
|
- | |||||
| 3 | 316032001 | Switch-igniter, (4) |
|
$ 69.35 | |||||
| 8 | 5303912606 | Spark Module |
|
$ 134.67 | |||||
| 10 | 5303323981 | Burner-top, Lf & Rr |
|
- | |||||
| 10 | 5303323982 | Burner-top, Rf & Lr |
|
- | |||||
| 11 | 318148501 | Ignitor-top Burner, Base, 16.25`` |
|
- | |||||
| 12 | 3016993 | Retainer-ignitor |
|
- | |||||
| 14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| 33 | 5303311317 | Bracket-burner Mtg, (2) |
|
- | |||||
| 35 | 318146300 | Bushing |
|
- | |||||
| *32725 | 08016432 | Screw,truss Head ,8-18 X 0.375 ,(4) |
|
- | |||||
| *32726 | 5303311306 | Screw,8-18 X 0.375 |
|
- | |||||
| *32727 | 5303311532 | Screw, Back |
|
- | |||||
| *32728 | 5304403070 | Screw |
|
- | |||||
| *32729 | 5303324191 | Washer |
|
- | |||||
| *32730 | 5304453707 | Screw, 8-32 X 3/8, (6) (Replaces: 5303311333) |
|
Immediately | $ 15.92 | ||||
| *32731 | 5303311318 | End Connector |
|
- |
