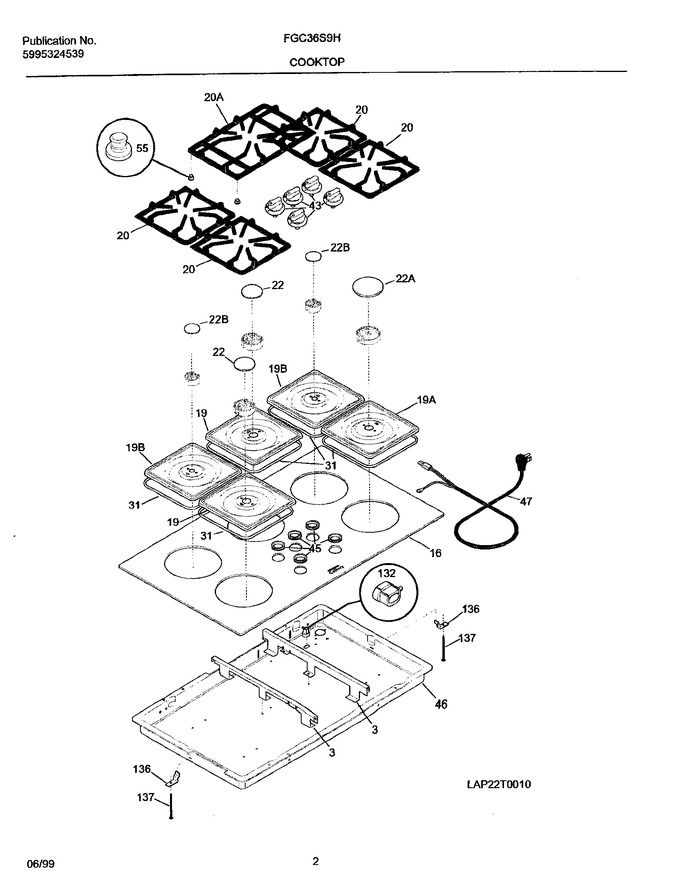

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Support Main Top		Appelez-nous	-
16	318079606		Glass Cooktop Assy, Black		Appelez-nous	-
19	318168114		Pan,burner ,black ,medium				$ 151.68
20	318120305		Grate, Black		Appelez-nous	-
22	316213500		Cap-burner Mid Black   (Replaces: 318076410)				$ 43.23
31	318053901		Gasket-vent   (Replaces: 318053900)				$ 33.60
43	318099100		Knob-control Black				$ 123.62
45	318146200		Bushing		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
55	318096700		Spacer,center Grate		Appelez-nous	-
132	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
136	5303935029		Fixation Support				$ 61.79
137	5303323138		Screw, 10-24 X 2 1/2				$ 14.13
19A	318168124		Pan,burner ,black ,large				$ 140.67
19B	318168104		Pan,burner ,black ,small				$ 155.93
20A	318024803		Grate-center		Appelez-nous	-
22A	318076420		Cap-burner Large Black		Appelez-nous	-
22B	318076400		Cap-burner Small Black				$ 25.66
NI	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw, 8-18 X 1/2				$ 15.17
