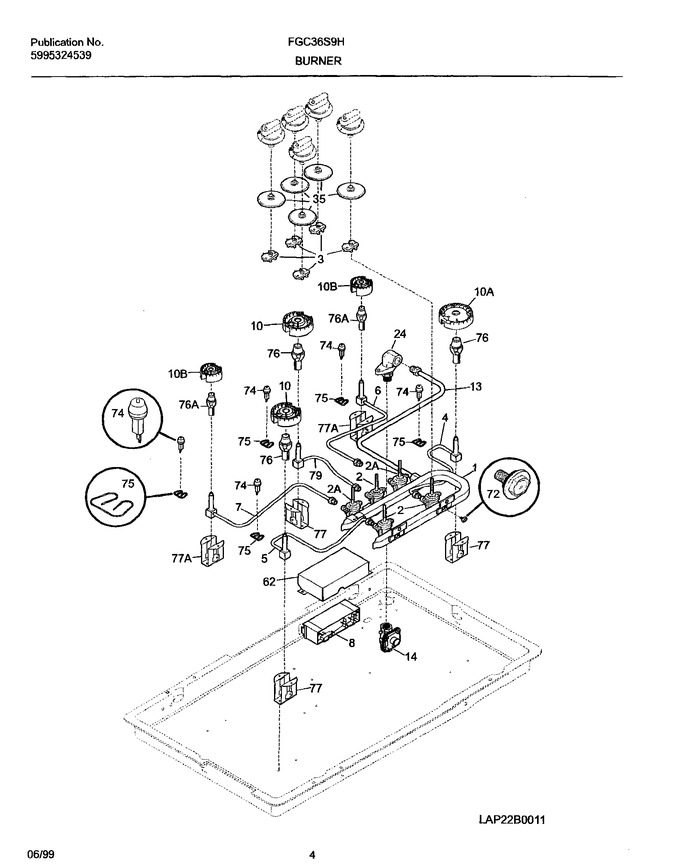

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318177200 | Manifold Pipe |
|
- | |||||
| 6 | 318167706 | Tube,burner |
|
$ 223.26 | |||||
| 7 | 318167713 | Tube,burner |
|
$ 178.61 | |||||
| 10 | 318148001 | Burner Assy-mid |
|
$ 112.88 | |||||
| 13 | 318054505 | Connection,manifold Tube |
|
- | |||||
| 24 | 318054000 | Elbow Fitting |
|
- | |||||
| 35 | 5303307978 | Bushing-insulation |
|
- | |||||
| 62 | 318160200 | Cover,spark Module |
|
- | |||||
| 72 | 5303323141 | Screw,valve Mtg ,1/4-20 X 5/16 |
|
- | |||||
| 74 | 318148700 | Ignitor,top Burner |
|
$ 62.19 | |||||
| 75 | 318148800 | Clip,electrode |
|
$ 68.57 | |||||
| 76 | 318167801 | Mixing Tube |
|
$ 98.60 | |||||
| 77 | 318112010 | Bracket-burner Mtg |
|
- | |||||
| 79 | 318167712 | Tube,burner |
|
$ 201.29 | |||||
| 10A | 318148002 | Burner Assy-large |
|
$ 144.64 | |||||
| 10B | 318148000 | Burner Assy-small |
|
$ 252.58 | |||||
| 2A | 318087001 | Valve-top Burner |
|
$ 204.59 | |||||
| 76A | 318167800 | Mixing Tube |
|
$ 78.33 | |||||
| 77A | 318112000 | Bracket-burner Mtg |
|
$ 51.14 | |||||
| F14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| F2 | 5303935042 | Valve-top Burner |
|
$ 175.25 | |||||
| F3 | 316032002 | Switch-ignitor |
|
$ 63.46 | |||||
| F4 | 318167705 | Tube,burner |
|
$ 180.71 | |||||
| F5 | 318167704 | Tube-burner |
|
$ 70.04 | |||||
| F8 | 808608804 | Spark Module (Replaces: 318079000) |
|
Immediately | $ 76.06 | ||||
| NI | 318127409 | Lp Conversion Kit |
|
$ 55.23 | |||||
| NI | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 08011955 | Screw,10-24 X 3/8 |
|
Immediately | $ 9.36 | ||||
| NI | 5304403558 | Screw,10-16 X 0.250 |
|
- |
