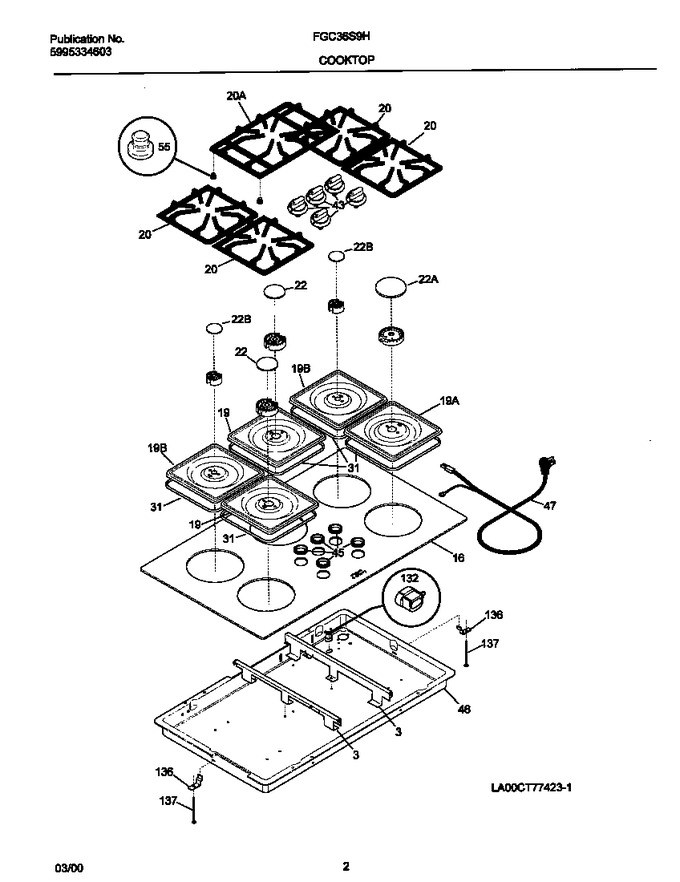

SELECT A DIAGRAM

01 - Cover


02 - Cooktop


03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318171400		Support,glass		Appelez-nous	-
16	318079606		Main Top, Glass		Appelez-nous	-
19	318168104		Burner Pan Small Black,small Rr & Lr				$ 155.93
19	318168114		Burner Pan Medium Black,mid Lf & Cr				$ 151.68
19	318168124		Burner Pan Large Black,large Rf				$ 140.67
20	318120303		Grate		Appelez-nous	-
20	318024803		Grate-center		Appelez-nous	-
22	318076420		Cap-burner,black ,large Rf		Appelez-nous	-
22	316213500		Cap-burner,black ,mid Lf &cr   (Replaces: 318076410)				$ 43.23
22	318076400		Cap-burner,black ,small Rr & Lr				$ 25.66
31	318053901		Gasket-pan   (Replaces: 318053900)				$ 33.60
35	318146300		Bushing		Appelez-nous	-
43	318099100		Knob,control ,black ,(5)				$ 123.62
45	318146200		Bushing		Appelez-nous	-
46	318077000		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
55	318096700		Spacer,center Grate		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	5303935029		Support				$ 61.79
137	5303323138		Screw,10-24x1/2				$ 14.13
*41720	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*41721	5303300265		Screw,8-18 X 1/2 ,chrome				$ 15.17
*41722	5303323429		Screw < 8-32 X 5/8 > Ground		Appelez-nous	-
*41723	5304403558		Screw,10-16 X 0.250		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
