SELECT A DIAGRAM

01 - Cover


02 - Cooktop


03 - Burner

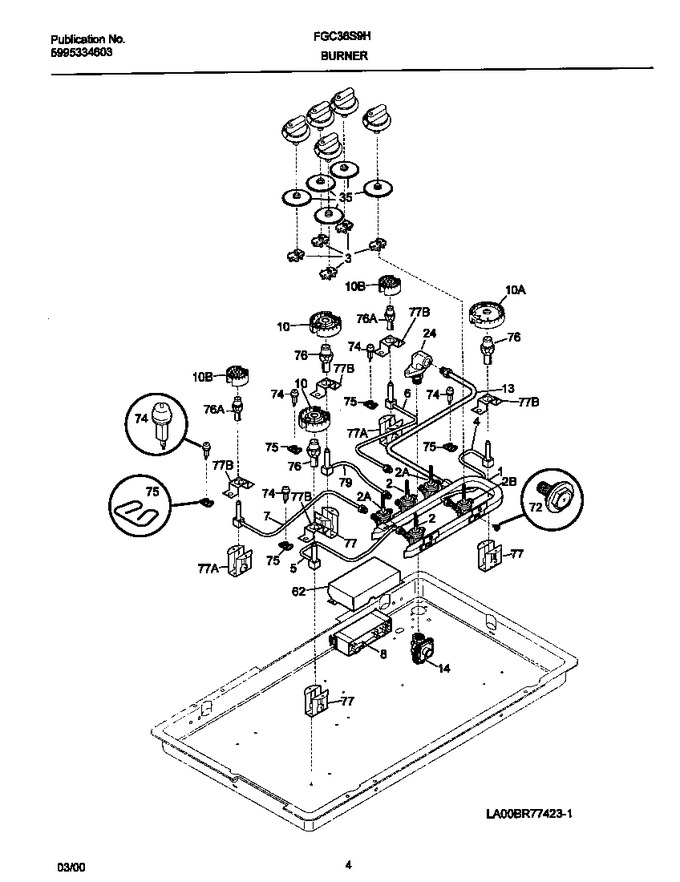

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177200		Manifold Pipe		Appelez-nous	-
2	5303935042		Valve-top Burner, 2-position, (3)				$ 175.25
2	318087040		Valve-top Burner				$ 284.34
2	318087001		Valve-top Burner				$ 204.59
3	316032002		Switch-ignitor, (4)				$ 63.46
4	318167705		Tube,burner				$ 180.71
5	318167704		Tube,burner ,fl				$ 70.04
6	318167706		Tube,burner				$ 223.26
7	318167713		Tube,burner				$ 178.61
8	808608804		Spark Module   (Replaces: 318079000)			Immediately	$ 76.06
10	318148002		Burner-top,large ,13000 Btu ,large Rf				$ 144.64
10	318148001		Burner-top Mid,9100btu ,lf & Lr				$ 112.88
10	318148000		Burner-top Small,5000btu ,rr				$ 252.58
13	318054505		Manifold Tube Connection,connection ,manifold		Appelez-nous	-
14	5308007974		Regulator-pressure				$ 309.02
24	318054000		Elbow Fitting		Appelez-nous	-
35	318146300		Bushing		Appelez-nous	-
62	318160200		Cover-spark Module,spark Module		Appelez-nous	-
72	5303323141		Screw Valve <1/4-20x 5/16		Appelez-nous	-
74	318148700		Ignitor Gourmet Assy				$ 62.19
75	318148800		Clip,electrode				$ 68.57
76	318167801		Mid & Large Mixing Tube,mid & Large				$ 98.60
76	318167800		Small Mixing Tube,small Rr & Lr				$ 78.33
77	318112010		Bracket-burner Mtg,mid & Large		Appelez-nous	-
77	318112000		Bracket-burner Mtg				$ 51.14
79	318167712		Tube,burner				$ 201.29
*41724	08011955		Screw,10-24 X 3/8 ,square Drive			Immediately	$ 9.36
*41725	318127704		Lp-conversion Kit		Appelez-nous	-
*41726	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*41727	5304403558		Screw,10-16 X 0.250		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
