01 - Cover

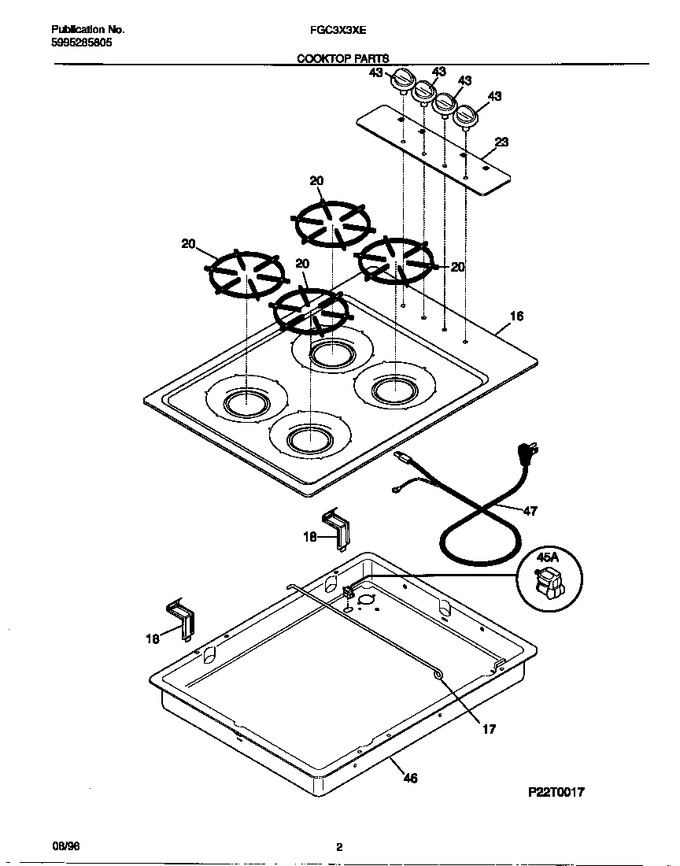

02 - Cooktop Parts
03 - Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5303305547 | Channel-top Stiffener (not Illustrated) |
|
- | |||||
| 16 | 5303311268 | Main Top, White |
|
- | |||||
| 17 | 3016817 | Rod,maintop Support |
|
- | |||||
| 18 | 5303311269 | Hinge-main Top, (2) |
|
- | |||||
| 20 | 316040807 | Grate, (4) |
|
- | |||||
| 23 | 318021600 | Panel-control |
|
- | |||||
| 43 | 318016509 | Knob-control, 4 |
|
- | |||||
| 45 | 5304513507 | Bushing - Snap (Replaces: 3201437) |
|
$ 9.10 | |||||
| 46 | 3201436 | Burner Box |
|
- | |||||
| 47 | 5303303991 | Cord-electric Power |
|
$ 96.50 | |||||
| *31960 | 3051038 | Nut |
|
- | |||||
| *31961 | 5303311306 | Screw, 8-18 X 3/8 |
|
- | |||||
| *31962 | 5304453707 | Screw, 8-32 X 3/8, (6) (Replaces: 5303311333) |
|
Immediately | $ 15.92 |
