View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cooktop Parts

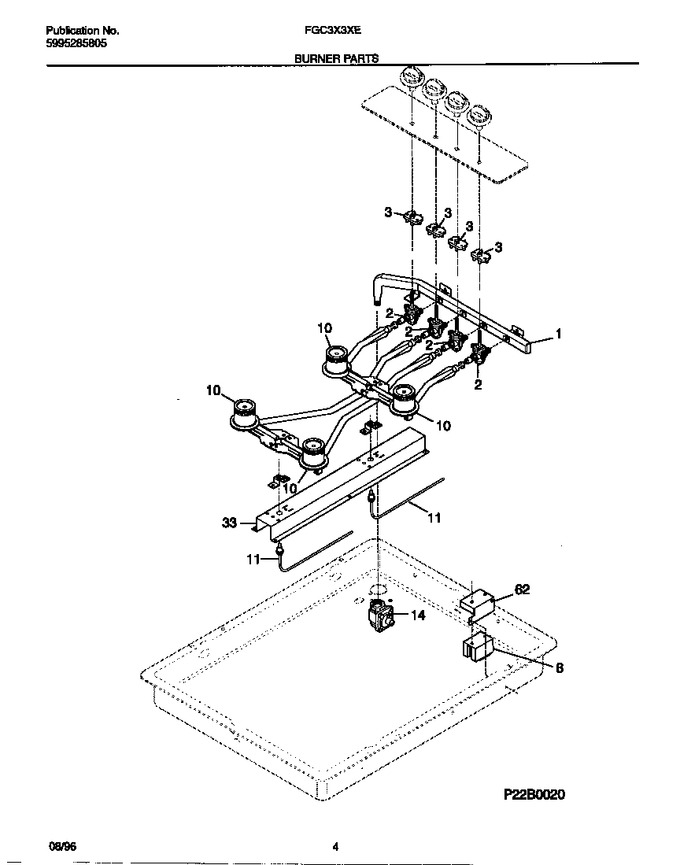

03 - Burner Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318077701 | Manifold Pipe |
|
- | |||||
| 3 | 316032002 | Switch-igniter, (4) |
|
$ 63.46 | |||||
| 8 | 5303209931 | Spark Module |
|
- | |||||
| 14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| 33 | 3201449 | Bracket-burner Mtg |
|
- | |||||
| 35 | 5303307978 | Bushing-insulation |
|
- | |||||
| 62 | 3201439 | Cover, Spark Module |
|
- | |||||
| *31963 | 08011129 | Nut, 6-32 |
|
- | |||||
| *31964 | 08011955 | Screw, Pan Head, 10-24 X 3/8, Square Drive |
|
Immediately | $ 9.36 | ||||
| *31965 | 08016432 | Screw, Truss Head, 8-18 X 3/8, (4) |
|
- | |||||
| *31966 | 5303311306 | Screw, 8-18 X 3/8 |
|
- | |||||
| *31967 | 5303307979 | Harness-wiring, Main |
|
- | |||||
| 10A | 5303320654 | Burner-top, Left Front |
|
- | |||||
| 10B | 5303320656 | Burner-top, Right Front |
|
- | |||||
| 10C | 5303320655 | Burner-top, Left Rear |
|
- | |||||
| 10D | 5303320657 | Burner-top, Right Rear |
|
- | |||||
| 11A | 3201447 | Ignitor-top Burner, 24``, (2) |
|
- | |||||
| 11B | 3201448 | Ignitor-top Burner, 30``, (2) |
|
- | |||||
| 2A | 316036600 | Valve-top Burner, (4), With Mtg Screws |
|
- | |||||
| 2B | 5303269845 | Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, W/gasket (not Illustrated) |
|
- |
