SELECT A DIAGRAM

01 - Cover

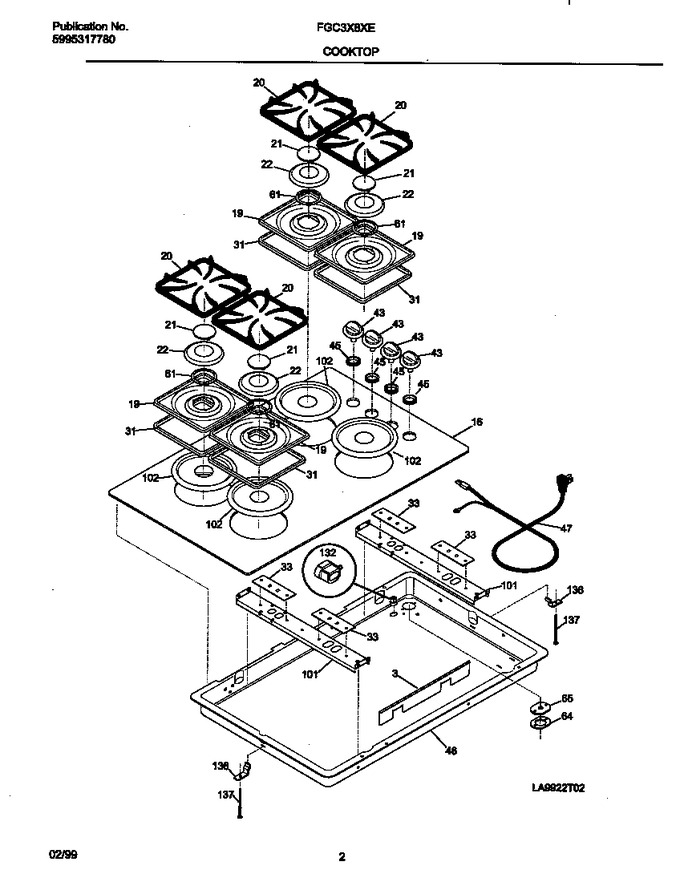

02 - Cooktop


03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318162200		Bracket-burner Mtg		Appelez-nous	-
16	318018504		Maintop,black		Appelez-nous	-
19	318066901		Pan-burner,black		Appelez-nous	-
20	318120105		Grate-black		Appelez-nous	-
21	316098501		Cap-burner Small		Appelez-nous	-
22	5303209009		Trim Ring Small,black		Appelez-nous	-
31	318053901		Gasket-vent   (Replaces: 318053900)				$ 33.60
33	318072000		Bracket-burner Mtg		Appelez-nous	-
43	318016501		Knob-top Valve		Appelez-nous	-
45	318146220		Bushing		Appelez-nous	-
46	5303307897		Burner Box		Appelez-nous	-
47	5303303991		Cord-elec Power				$ 96.50
61	318083900		Trim Ring		Appelez-nous	-
64	5303304033		Retainer/bracket		Appelez-nous	-
65	5304506478		Seal, Rubber   (Replaces: 5303304032)				$ 11.34
101	318162300		Bracket-burner		Appelez-nous	-
102	318057100		Deflector		Appelez-nous	-
132	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
136	5303935029		Fixation Support				$ 61.79
137	5303323138		Screw				$ 14.13
*03960	318052107		Wire Harness		Appelez-nous	-
*03961	5303311532		Screw		Appelez-nous	-
*03962	134178901		Screw, 8 X 1/2   (Replaces: 5303211311)				$ 14.89
*03963	5303307980		Screw, 8-32 X 7/16			Immediately	$ 14.18
*03964	5303323140		Screw, 10-32 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
