SELECT A DIAGRAM
01 - Cover
02 - Cooktop

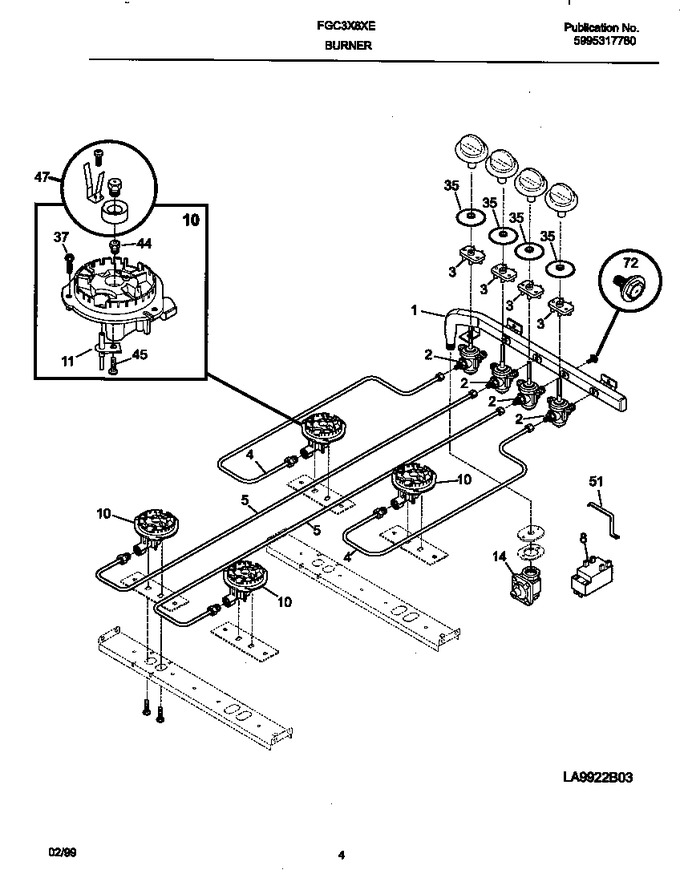

03 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318177003 | Manifold Pipe |
|
- | |||||
| 2 | 5303935042 | Valve-top Burner |
|
$ 175.25 | |||||
| 3 | 316032002 | Switch-ignitor |
|
$ 63.46 | |||||
| 4 | 5303305456 | Tube-burner |
|
- | |||||
| 5 | 5303305455 | Tube-burner |
|
- | |||||
| 8 | 5304505695 | Spark Module (Replaces: 5303280394) |
|
Immediately | $ 68.16 | ||||
| 10 | 318055011 | Burner Assy-top |
|
- | |||||
| 11 | 316011200 | Ignitor-top Burner |
|
Immediately | $ 38.68 | ||||
| 14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| 35 | 5303307978 | Bushing Insuolation |
|
- | |||||
| 37 | 5303320671 | Screw |
|
$ 1.91 | |||||
| 44 | 318088700 | Orifice |
|
- | |||||
| 45 | 316011100 | Screw-ignitor Mtg |
|
$ 3.41 | |||||
| 47 | 318127402 | Lp Kit |
|
- | |||||
| 51 | 318024200 | Bracket, Spark Module |
|
- | |||||
| 72 | 5303323141 | Screw-valve |
|
- | |||||
| *03965 | 08011955 | Screw,10-24 X 3/8 |
|
Immediately | $ 9.36 | ||||
| *03966 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 |
