SELECT A DIAGRAM

01 - Cover

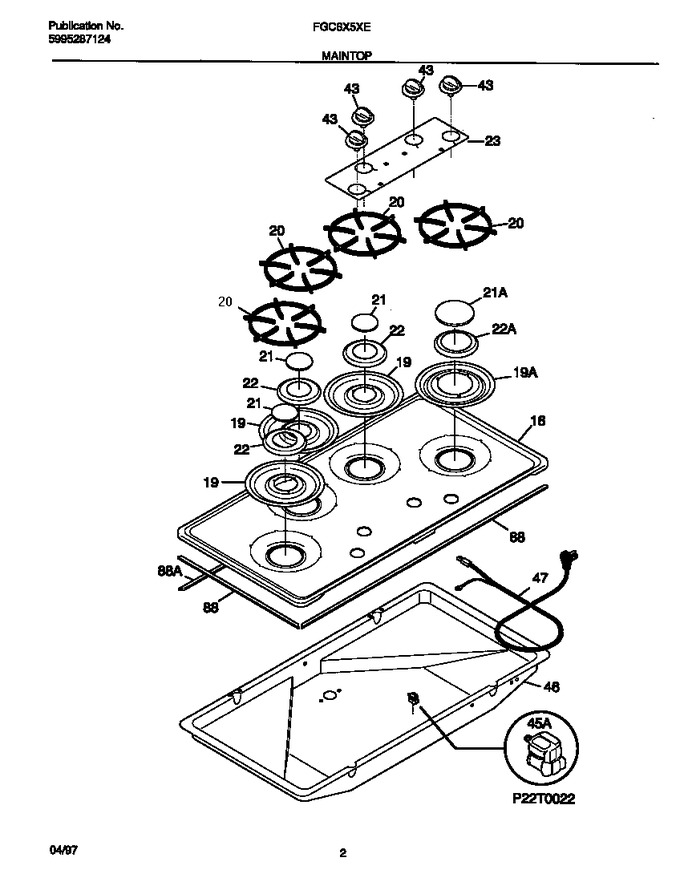

02 - Maintop


03 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318065902		Main Top, Almond		Appelez-nous	-
19	318067521		Pan-burner		Appelez-nous	-
19	318067501		Pan-burner, (3)		Appelez-nous	-
20	318120000		Grate, (4)		Appelez-nous	-
21	5303209009		Trim Ring, Black, (3)		Appelez-nous	-
21	5303311292		Trim Ring, Black, Large		Appelez-nous	-
22	316011001		Cap-burner, Black, Small, (3)		Appelez-nous	-
22	316011008		Cap-burner, Black, Large		Appelez-nous	-
23	318021700		Panel-control		Appelez-nous	-
43	318016506		Knob-top Valve, (4)		Appelez-nous	-
45	5304513507		Bushing - Snap   (Replaces: 3201437)				$ 9.10
46	318077100		Burner Box		Appelez-nous	-
47	5303303991		Cord-electric Power				$ 96.50
88	318052802		Gasket-cooktop, Back		Appelez-nous	-
*94800	5303210711		Insulation-bottom, Sides, (2)		Appelez-nous	-
*94801	318113600		Bracket		Appelez-nous	-
*94802	318125000		Deflector		Appelez-nous	-
*94803	318143400		Deflector		Appelez-nous	-
*94804	318143401		Deflector		Appelez-nous	-
88A	318052800		Gasket-cooktop		Appelez-nous	-
88B	318052801		Gasket-cooktop		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
