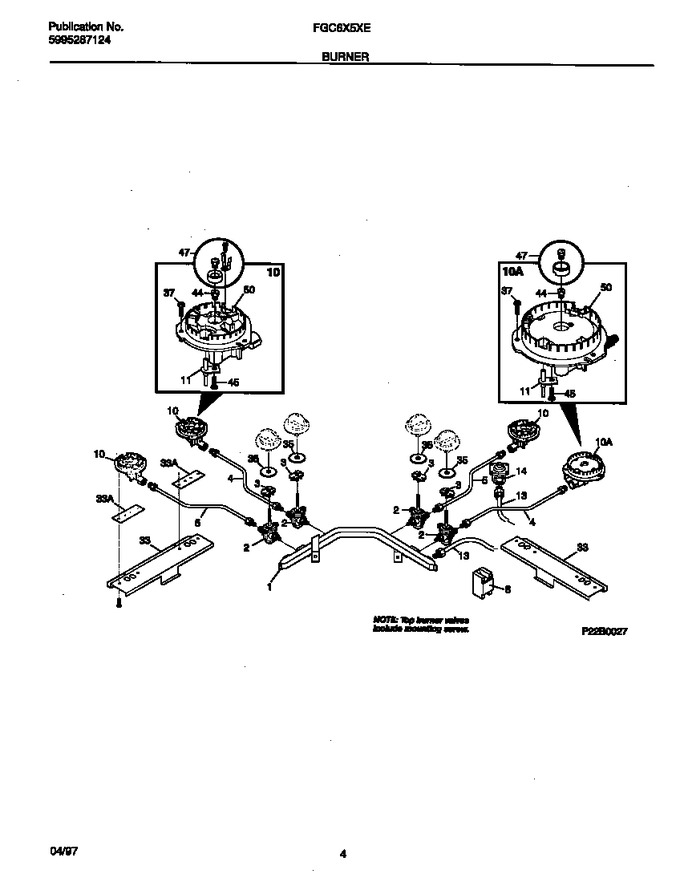

SELECT A DIAGRAM
01 - Cover
02 - Maintop
03 - Burner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318077910 | Manifold Pipe |
|
- | |||||
| 2 | 316036801 | Valve-top Burner, Large, W/screw |
|
- | |||||
| 3 | 316032002 | Switch-igniter, (4) |
|
$ 63.46 | |||||
| 4 | 318054604 | Tube-burner |
|
- | |||||
| 5 | 318054605 | Tube-burner |
|
- | |||||
| 8 | 5304505695 | Spark Module (Replaces: 5303280394) |
|
Immediately | $ 68.16 | ||||
| 10 | 318055100 | Burner Assy-top, Sealed, 11000 Btu, Includes, 11, 37, 44 |
|
- | |||||
| 10 | 318055001 | Burner Assy-top, Sealed, 9000 Btu, (3), Includes, 11, 37 |
|
- | |||||
| 11 | 316011200 | Ignitor-top Burner, W/mtg Bracket |
|
Immediately | $ 38.68 | ||||
| 13 | 318054504 | Connector, Manifold Pipe |
|
- | |||||
| 14 | 5308007974 | Regulator-pressure |
|
$ 309.02 | |||||
| 33 | 318072000 | Bracket-burner Mtg, (4) |
|
- | |||||
| 33 | 318090400 | Bracket |
|
- | |||||
| 35 | 5303307978 | Bushing-insulation |
|
- | |||||
| 37 | 316069301 | Screw-burner Mtg, Hex Washer Head, M3 X 0.50 (Replaces: 316069300) |
|
$ 2.99 | |||||
| 45 | 316011100 | Screw-igniter Mtg, Self-tapping, M3 X 5.8, (4) |
|
$ 3.41 | |||||
| 47 | 5303319611 | Lp Conversion Kit, 5 Burner |
|
$ 59.35 | |||||
| *94805 | 5303304033 | Retainer/bracket |
|
- | |||||
| *94806 | 5304506478 | Seal, Rubber (Replaces: 5303304032) |
|
$ 11.34 | |||||
| *94807 | 08011955 | Screw, Pan Head, 10-24 X 3/8, Square Drive |
|
Immediately | $ 9.36 | ||||
| *94808 | 318065000 | Restrictor |
|
- | |||||
| *94809 | 134178901 | Screw, 8 X 1/2 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| *94810 | 5303307980 | Screw, 8-32 X 7/16 |
|
Immediately | $ 14.18 | ||||
| *94811 | 5303320671 | Screw, Metric, (15) |
|
$ 1.91 | |||||
| 2A | 5303935042 | Valve-top Burner, 2-position, (3) |
|
$ 175.25 | |||||
| 2B | 316048200 | Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated) |
|
- | |||||
| 44A | 318088700 | Orifice-top Burner, 9000 Btu, Small |
|
- | |||||
| 44B | 318088702 | Orifice-top Burner, 11000 Btu, Large |
|
- | |||||
| 50A | 316010601 | Burner-top, Large |
|
$ 42.42 | |||||
| 50B | 5303935026 | Burner-top, Small, (3), Includes 37 |
|
- |
