SELECT A DIAGRAM
01 - Blower Assembly
02 - Body
03 - Control Panel
04 - Top Assembly
New Model Search:

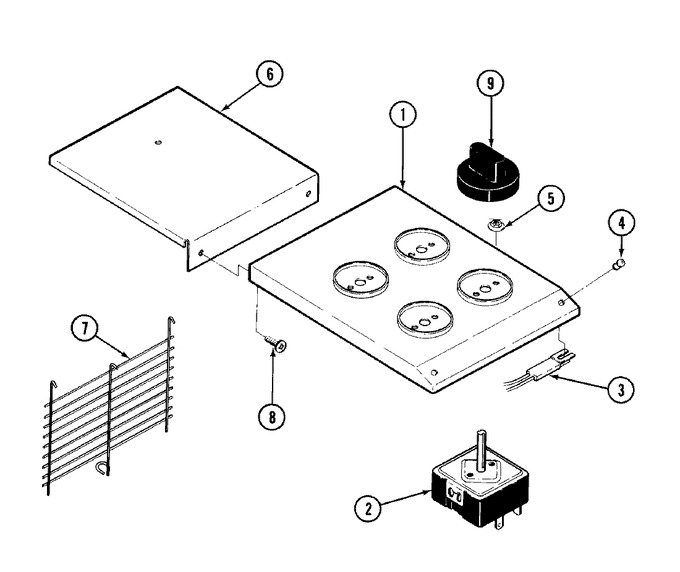

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 712618 | Escutcheon W/inlay | 11 |
|
- | ||||
| 2 | W11120795 | Switch, Infinite (Replaces: Y703147) | 11 |
|
Immediately | $ 84.20 | |||
| 3 | 705327 | Light, Pilot | 11 |
|
- | ||||
| 4 | WPY700631 | Lens, Pilot Light (Replaces: Y700631) | 11 |
|
$ 5.09 | ||||
| 5 | Y712255 | Palnut | 11 |
|
- | ||||
| 6 | 703929 | Cover, Fan Housing | 11 |
|
- | ||||
| 7 | 703950 | Guard, Fan | 11 |
|
- | ||||
| 8 | WPY706189 | Screw No.8bx38 (Replaces: 703506) | 11 |
|
Immediately | $ 6.47 | |||
| 9 | 12200035 | Knob, Switch (Replaces: Y704844) | 11 |
|
Immediately | $ 78.40 | |||
| 9 | 3400855 | Screw 8-32 (Replaces: Y704426) | 11 |
|
- | ||||
| 9 | 703990 | Wire Cable Assy | 11 |
|
- | ||||
| 9 | Y703989 | Wire, Grey (rt) | 11 |
|
- | ||||
| 9 | 704429 | Nut, Kep | 11 |
|
- |
