SELECT A DIAGRAM
01 - Blower Assembly
02 - Body
03 - Control Panel

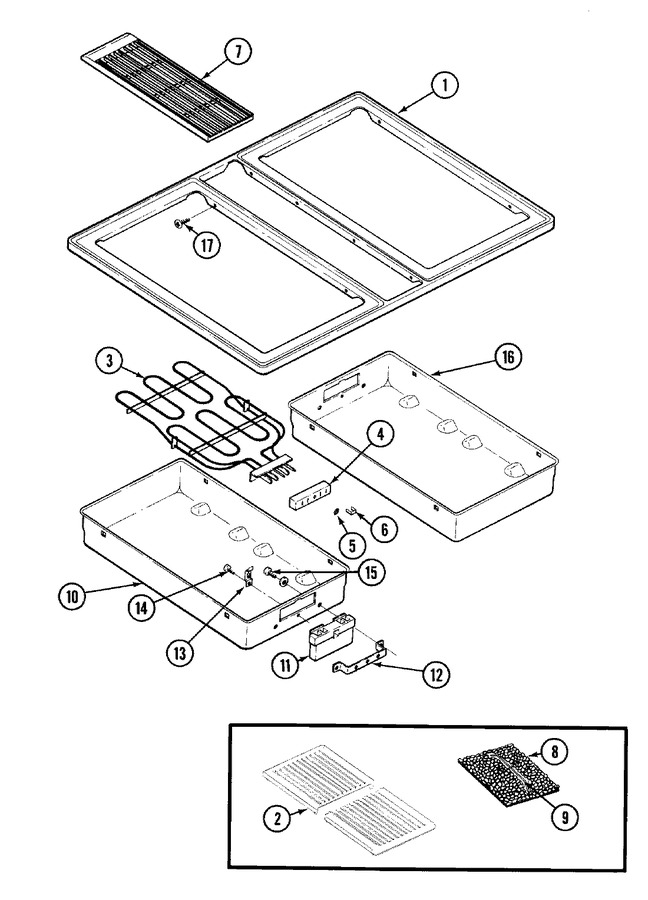

04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704987 | Top, Unit (blk) | 11 |
|
- | ||||
| 1 | 704986 | Cover, Motor | 11 |
|
- | ||||
| 2 | Y703746 | Grates, Grill (2) | 11 |
|
- | ||||
| 3 | 703944 | Element,complete,energy Saver | 11 |
|
- | ||||
| 4 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
Immediately | $ 87.44 | |||
| 5 | Y708862 | Nut, Speed | 11 |
|
$ 13.08 | ||||
| 6 | Y700450 | Clip, Shunt | 11 |
|
$ 9.51 | ||||
| 7 | Y705110 | Grill, Air | 11 |
|
- | ||||
| 8 | 708929 | Plate, Rock | 11 |
|
- | ||||
| 9 | 700819 | Support, Rock Plate | 11 |
|
$ 71.81 | ||||
| 10 | Y712197 | Wire, Brown | 11 |
|
- | ||||
| 10 | 701955 | Pan, Grill (lt) | 11 |
|
- | ||||
| 10 | Y712200 | Wire, Yellow | 11 |
|
- | ||||
| 10 | 712356 | Wire Kit | 11 |
|
- | ||||
| 10 | Y712203 | Wire, Violet | 11 |
|
- | ||||
| 11 | 704168 | Receptacle, Ceramic | 11 |
|
- | ||||
| 12 | Y702698 | Bracket | 11 |
|
- | ||||
| 13 | 74004835 | Clip (Replaces: Y702699) | 11 |
|
$ 11.37 | ||||
| 14 | 00489128 | Screw (Replaces: Y705026) | 11 |
|
$ 773.97 | ||||
| 15 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 16 | Y712357 | Wire Kit | 11 |
|
- | ||||
| 16 | WPY702434 | Receptacle (Replaces: 702783) | 11 |
|
Immediately | $ 96.61 | |||
| 16 | Y712199 | Wire, Brown | 11 |
|
- | ||||
| 16 | Y701956 | Pan, Grill (rt) | 11 |
|
- | ||||
| 16 | WP5708M007-60 | Wire, Yellow (Replaces: Y712201) | 11 |
|
$ 117.23 | ||||
| 16 | WP5708M008-60 | Wire, Violet (Replaces: Y712202) | 11 |
|
$ 87.19 | ||||
| 17 | W11233072 | Screw (Replaces: Y707347) | 11 |
|
Immediately | $ 12.62 | |||
| 17 | WP74003976 | Washer (Replaces: 702592) | 11 |
|
$ 6.47 |
