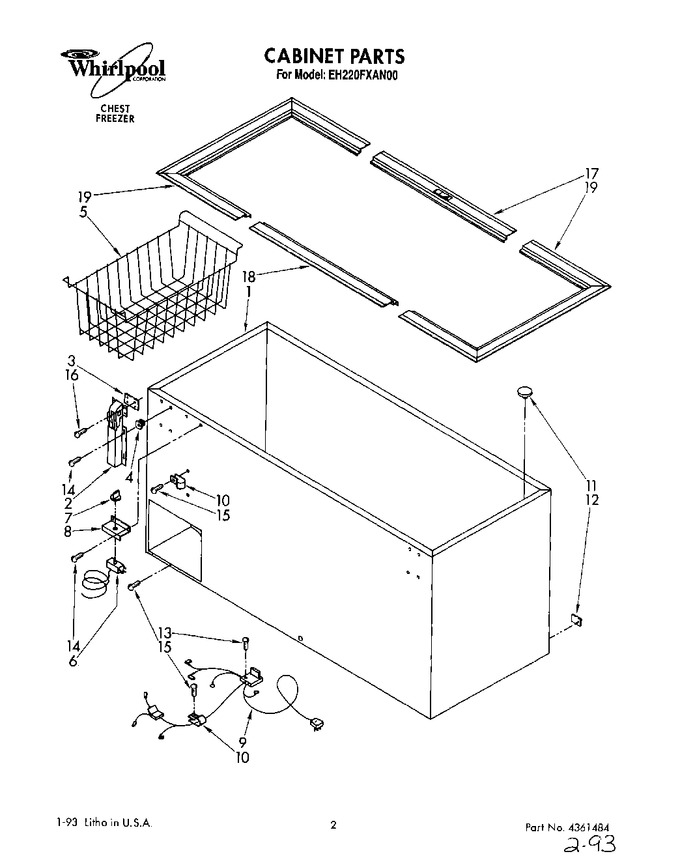

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4356319		Hinge, Assembly		Appelez-nous	-
3	1-17548-006		Hinge, Spacer   (Replaces: 4356451)				$ 18.64
4	4356321		Grommet, Plastic				$ 11.72
5	4356322		Wire Basket		Appelez-nous	-
6	4356323		Thermostat		Appelez-nous	-
7	4356324		Thermostat, Knob		Appelez-nous	-
8	4356325		Thermostat, Control Bracket		Appelez-nous	-
9	4356326		Wiring, Harness External		Appelez-nous	-
10	488946		Plastic, Clip   (Replaces: 4356328)				$ 18.41
11	4356334		Drain, Cap		Appelez-nous	-
12	4356333		Drain, Plug		Appelez-nous	-
13	487980		Screw		Appelez-nous	-
14	WP308685		Screw   (Replaces: 308685)			Immediately	$ 7.08
15	WP488787		Screw   (Replaces: 488787)				$ 9.52
16	489181		Screw		Appelez-nous	-
17	4356313		Front, Breaker Strip		Appelez-nous	-
18	4356315		Rear, Breaker Strip		Appelez-nous	-
19	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
19	350956		Enamel, Almond (13 Oz. Spray Can)				$ 46.30
19	4356314		End, Breaker Strip (2)		Appelez-nous	-
19	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
	LIT4361484		Parts List		Appelez-nous	-
