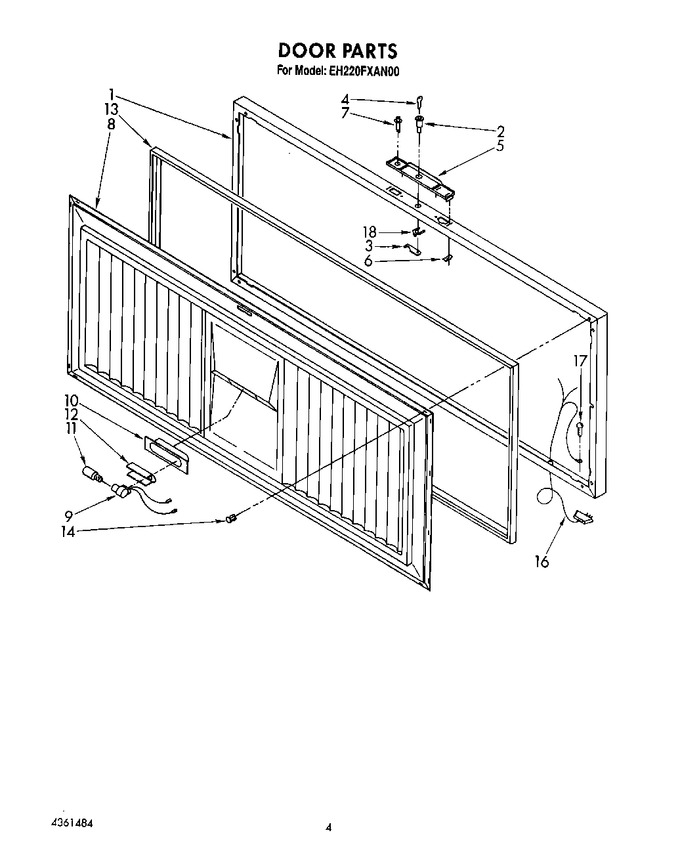

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4356450 | Exterior, Door Panel |
|
- | |||||
| 2 | 4356302 | Lock |
|
- | |||||
| 3 | 2-35195-002 | Hook Bolt, Lock (Replaces: 4356303) |
|
$ 57.10 | |||||
| 4 | 4356304 | Key |
|
- | |||||
| 5 | 4356305 | Handle |
|
- | |||||
| 6 | 4356306 | Clip, Oblong |
|
$ 7.36 | |||||
| 7 | 4356453 | Signal Light |
|
- | |||||
| 8 | 4356308 | Interior, Door Panel |
|
- | |||||
| 9 | 4356309 | Lamp Socket |
|
- | |||||
| 10 | 3-25693-001 | Reflector, Light (Replaces: 4356310) |
|
$ 15.36 | |||||
| 11 | W10873798 | Bulb, Light (Replaces: 4356311) |
|
Immediately | $ 12.53 | ||||
| 12 | 4356312 | Heat Shield |
|
- | |||||
| 13 | 4356454 | Gasket |
|
- | |||||
| 14 | 4356317 | Gasket, Clip Rear |
|
- | |||||
| 16 | 4356327 | Wiring Harness, Internal |
|
- | |||||
| 17 | WP488787 | Screw (Replaces: 488787) |
|
$ 9.52 | |||||
| 18 | 983465 | Clip, Spring |
|
- |
