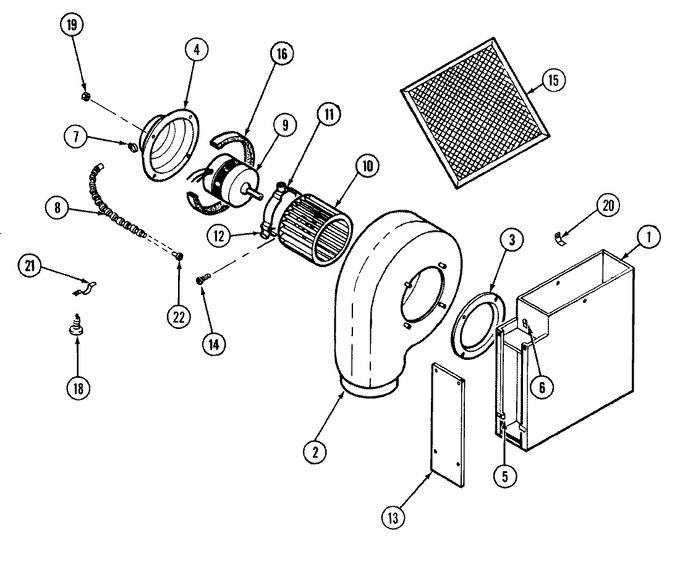

01 - Blower Motor


02 - Body


03 - Control Panel


04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y701840		Plenum	10	Appelez-nous	-
2	712008		Scroll, Blower Assy.	10	Appelez-nous	-
3	702889		Locknut Cap, W/nylon Insert	10	Appelez-nous	-
3	Y704758		Ring, Inlet	10	Appelez-nous	-
4	Y712550		Motor Cover Assy	10	Appelez-nous	-
5	701958		Clip, Tinnerman	10	Appelez-nous	-
6	Y707831		Clip	10	Appelez-nous	-
6	Y704761		Ring, Restrictor	10	Appelez-nous	-
6	Y704762		Retainer	10	Appelez-nous	-
7	715780		Clamp, Cable	10	Appelez-nous	-
8	Y705155		Conduit, Metal	10	Appelez-nous	-
9	Y705032		Motor, Blower	10			$ 254.76
10	WPY707985		Wheel, Blower   (Replaces: Y707985)	10		Immediately	$ 145.55
11	Y707393		Band, Motor	10	Appelez-nous	-
12	WP71003558		Isolator   (Replaces: Y708926)	10			$ 11.47
13	Y707681		Plate, Cover	10	Appelez-nous	-
13	707407		Screw	10			$ 6.42
14	Y707402		Screw	10	Appelez-nous	-
14	707161		Nut	10	Appelez-nous	-
15	WP707929		Filter, Grease   (Replaces: 707929)	10		Immediately	$ 44.51
16	Y715957		Foam, Urethane	10	Appelez-nous	-
17	Y705154		Connector	10	Appelez-nous	-
17	Y704968		Cover, Motor	10	Appelez-nous	-
18	WP59002061		Screw   (Replaces: Y707172)	10			$ 6.98
19	WPY707702		Locknut   (Replaces: Y707702)	10		Immediately	$ 6.26
19	WP71001171		Screw   (Replaces: Y701379)	10			$ 6.26
20	Y707688		Retainer, Filter	10	Appelez-nous	-
21	712310		Tinnerman	10	Appelez-nous	-
22	712311		Bushing	10	Appelez-nous	-
