SELECT A DIAGRAM

01 - Blower Motor


02 - Body


03 - Control Panel

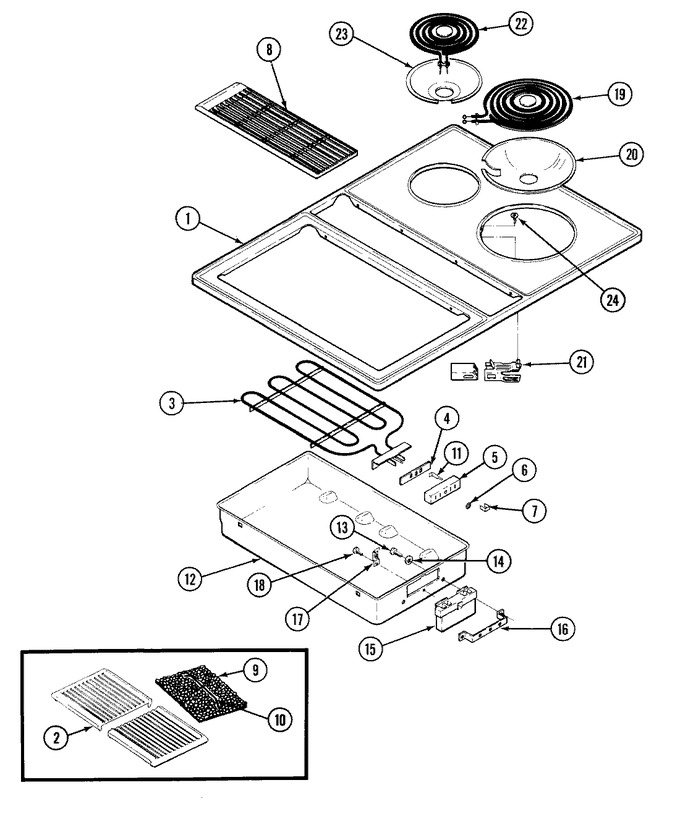

04 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y04100404		Top, Black	13	Appelez-nous	-
1	704101		Top	10	Appelez-nous	-
2	Y703746		Grates, Grill (2)	10	Appelez-nous	-
3	Y04100004		Element, Grill-single	10	Appelez-nous	-
4	Y700449		Insulator	10	Appelez-nous	-
5	WPY708730		Block, Terminal   (Replaces: Y708730)	10		Immediately	$ 87.44
6	Y708862		Nut, Speed	10			$ 13.08
7	Y700450		Clip, Shunt	10			$ 9.51
8	Y703658		Grill, Air	10	Appelez-nous	-
9	708929		Plate, Rock	10	Appelez-nous	-
10	700819		Support, Rock Plate	10			$ 71.81
11	Y708572		Spade, Contact	10		Immediately	$ 11.34
12	12200016		Wire Kit	10	Appelez-nous	-
12	Y712203		Wire, Violet	10	Appelez-nous	-
12	Y712200		Wire, Yellow	10	Appelez-nous	-
12	Y712197		Wire, Brown	10	Appelez-nous	-
12	Y701489		Contact/wire Assy. (blu-rt)	10	Appelez-nous	-
12	701955		Pan, Grill (lt)	10	Appelez-nous	-
13	WP59002061		Screw   (Replaces: Y707172)	10			$ 6.98
14	Y707664		Washer	10	Appelez-nous	-
15	WPY702434		Receptacle (ceramic)   (Replaces: Y702434)	10		Immediately	$ 96.61
16	Y702698		Bracket	10	Appelez-nous	-
17	74004835		Clip   (Replaces: Y702699)	10			$ 11.37
18	WP489128		Screw   (Replaces: Y707341)	10			$ 9.79
19	WP660533		Element, Conv. 9``   (Replaces: Y703421)	10		Immediately	$ 39.47
20	715878		Pan, Drip (8``)	10		Immediately	$ 21.16
21	12001676		Rewire Kit   (Replaces: Y712361)	10		Immediately	$ 28.45
22	WPY04100165		Element, Conv. 6``   (Replaces: Y703422)	10		Immediately	$ 50.62
23	715877		Pan, Drip (6``)	10		Immediately	$ 19.39
24	W11233072		Screw   (Replaces: Y707347)	10		Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
