SELECT A DIAGRAM

01 - Cover


03 - Control Panel

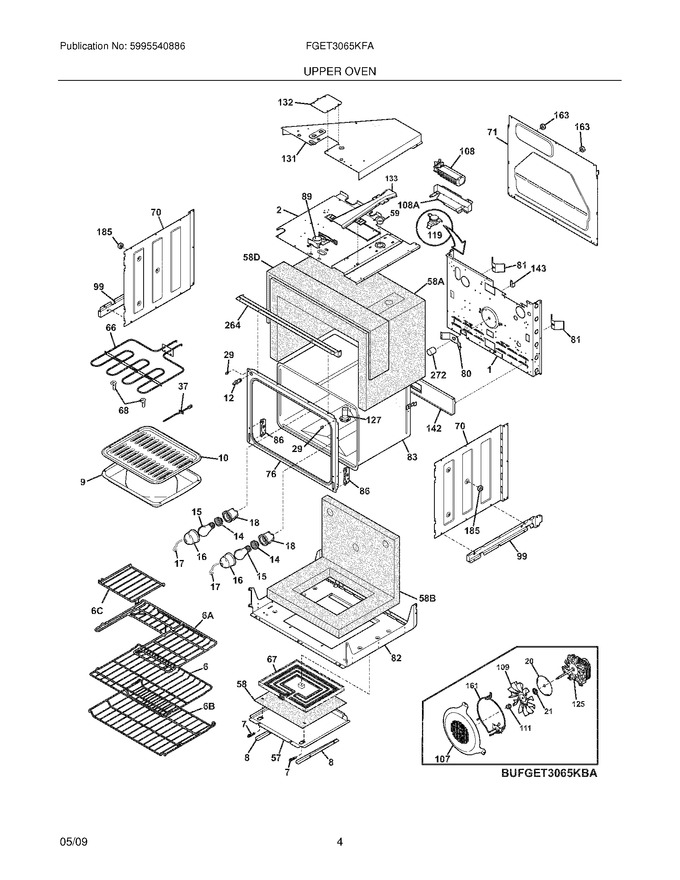

05 - Upper Oven


07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258957		Shield,insulation ,upper		Appelez-nous	-
6	318922301		Rack,oven			Immediately	$ 163.05
7	318368300		Pin,locking ,(2)				$ 9.93
8	318361801		Bracket,element ,(2)		Appelez-nous	-
9	5303317977		Pan,broileroptional Access0ry		Appelez-nous	-
10	5303317976		Insert,broiler Panoptional Access0ry		Appelez-nous	-
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
29	316517600		Spacer,oven Door				$ 12.05
57	318361610		Panel,service				$ 89.82
58	318330501		Insulation,service Panel ,12.47 X 14.77				$ 35.32
59	318072577		Duct,oven Vent				$ 16.30
68	5304403015		Support,hanger ,(4) ,broil Element				$ 35.04
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056292		Front,oven				$ 131.67
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
82	318258730		Shield,insulation ,lower		Appelez-nous	-
83	318261439		Liner,oven Assy		Appelez-nous	-
86	318561100		Receptacle,hinge ,(2)				$ 21.23
99	318252804		Support,side		Appelez-nous	-
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut-fan Retainer   (Replaces: 318399800)			Immediately	$ 19.13
127	318357001		Adapter Assembly,w/vent Tube ,and Catalyst				$ 50.66
131	318272901		Box,vent				$ 59.01
132	318003000		Plate,shield		Appelez-nous	-
133	318347800		Chimney		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer,(4)		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257723		Trim,oven ,black ,front				$ 67.46
272	318249409		Tube,protector		Appelez-nous	-
58A	318536600		Insulation,wrapper ,top And Sides				$ 85.42
58B	318362100		Insulation,rear & Bottom ,oven Wrapper		Appelez-nous	-
58D	318372006		Insulation,1/2`` Thick ,43 X 9.5				$ 67.28
6A	318926803		Rack,half ,oven				$ 165.48
6B	318919801		Rack,oven				$ 335.42
6C	318929702		Insert,half Rack				$ 100.46
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F119	318004900		Switch,thermal				$ 60.25
F125	5304463302		Motor,fan   (Replaces: 318398200)			Immediately	$ 259.95
F125	318142100		Washer,motor ,convection				$ 12.39
F161	318255504		Element,convection ,350 W				$ 97.07
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F66	318255807		Element,broil ,4000w   (Replaces: 318255800)				$ 323.19
F67	318601604		Element,hidden Bake ,upper Oven   (Replaces: 318601601)			Immediately	$ 260.38
F89	318261229		Motor,latch Assy   (Replaces: 318261215)			Immediately	$ 93.62
FNI	318402206		Wiring Harness,main ,latch		Appelez-nous	-
FNI	318199768		Wiring Harness,latch ,bas		Appelez-nous	-
FNI	318231870		Wiring Harness,bake Element				$ 83.42
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	5304470882		· Screw,anti-tip ,8 - 5/8 ,black ,(2)				$ 13.46
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303288566		Screw,8 X 1/4 ,(6)   (Replaces: 5303323130)				$ 2.12
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318368500		Seal,housing ,flat Washer ,lower Oven		Appelez-nous	-
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(4)				$ 15.17
NI	5303323277		Screw (8-18x13/32)				$ 8.66

    View Diagram in Separate Window       Print Part List
