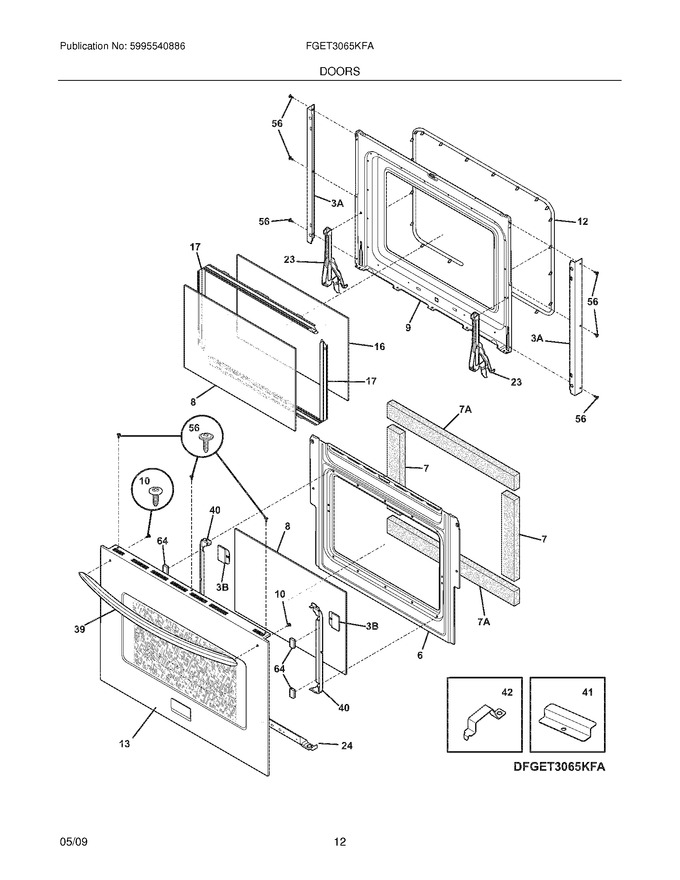

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260201		Trim,oven Door ,black ,upper				$ 57.91
4	318261318		Glass Assy.,oven Door ,black ,outer ,w/trim		Appelez-nous	-
4	318261316		Glass Assy.,oven Door ,black ,outer ,w/trim & Badge				$ 257.80
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318360111		Liner,oven Door				$ 147.68
10	5304500008		Screw,10-24 X 1.750 ,handle Mtg   (Replaces: 5304416408)				$ 12.13
12	318053121		Seal,oven Door ,upper				$ 99.91
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
23	318567101		Hinge,oven Door ,(2)				$ 76.18
29	318014405		Spacer,door		Appelez-nous	-
39	318927401		Handle,oven Door ,black				$ 189.11
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372016		Insulation,door ,(2)   (Replaces: 318372002)				$ 17.72
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
