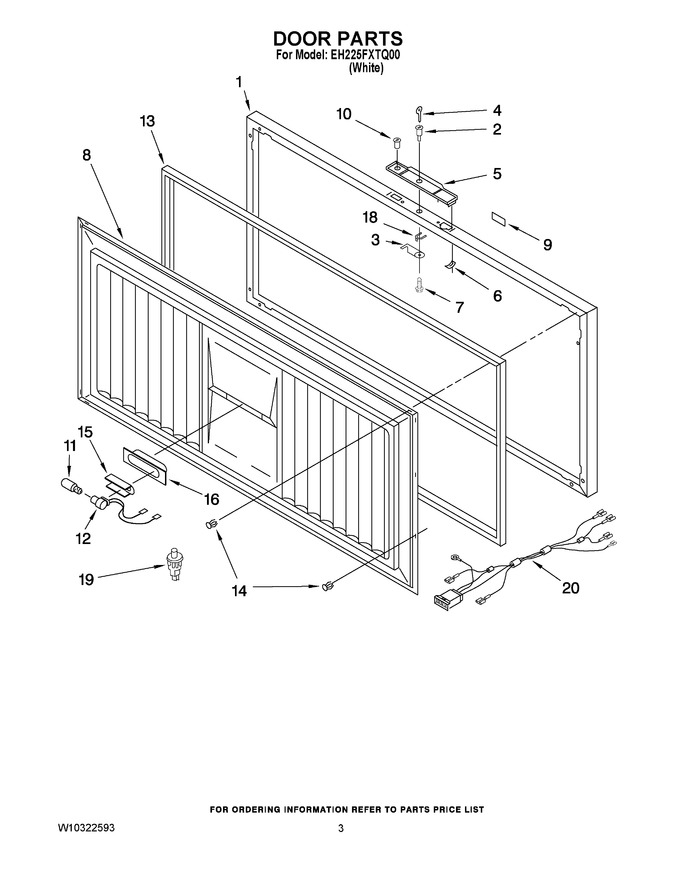

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-35652-404		Exterior Door Panel (includes Insulation)		Appelez-nous	-
2	3-35284-001		Lock (includes Items 2, 3, 4, 7 & 13)				$ 24.42
3	2-35195-002		Hook Bolt, Lock   (Replaces: 4356608)				$ 57.10
4	WP1-26355		Key   (Replaces: 1-26355)				$ 9.76
5	4-35663-149		Handle				$ 43.72
6	4356306		Clip, Oblong				$ 7.36
7	W11233072		Screw   (Replaces: 4356609)			Immediately	$ 12.62
8	4-25770-014		Interior Door Panel				$ 147.24
9	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 79.87
10	W10295029		Light, Indicator		Appelez-nous	-
11	W10873798		Bulb, Light   (Replaces: 4356311)			Immediately	$ 12.53
12	4356874		Socket, Light		Appelez-nous	-
13	4-35260-006		Gasket			Immediately	$ 291.90
14	4356703		Gasket, Clip				$ 43.62
15	4356704		Shield, Heat				$ 11.85
16	3-25693-001		Reflector, Light   (Replaces: 4356310)				$ 15.36
18	4356493		Clip, Spring		Appelez-nous	-
19	W10917237		Switch, Light   (Replaces: 4356796)				$ 39.14
20	W10620417		Harness, Wiring (lid)   (Replaces: W10281253)				$ 120.34

    View Diagram in Separate Window       Print Part List
