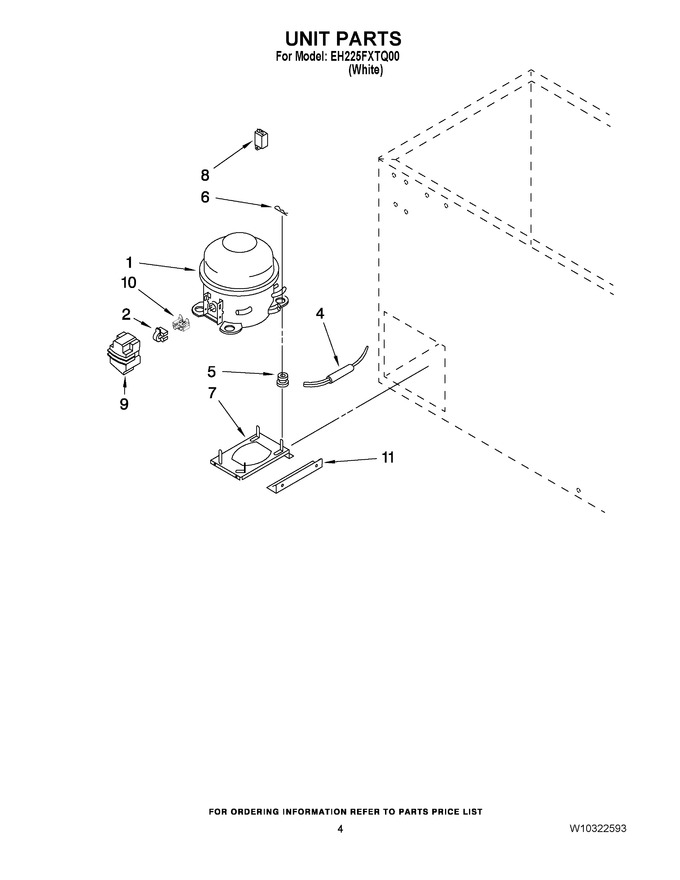

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10309994		Compressor (includes Items 2, 3, 4, 5, 6 & 9)   (Replaces: 4-32812-264)			Immediately	$ 551.61
2	4356738		Relay				$ 53.17
4	4001		Drier   (Replaces: 4357299)			Immediately	$ 9.64
5	4356335		Compressor, Mounting Grommet		Appelez-nous	-
6	W10202610		Compressor, Hitch Pin		Appelez-nous	-
7	4356590		Compressor, Base		Appelez-nous	-
8	8210328		Capacitor		Appelez-nous	-
9	4356777		Cover		Appelez-nous	-
10	WP2214067		Overload   (Replaces: 4390624)				$ 118.49
11	3-81556-001		Brace   (Replaces: 4356720)		Appelez-nous	-
NI	N/P		Refrigerant Charge (4.8 Oz.(r-134a))		Appelez-nous	-
