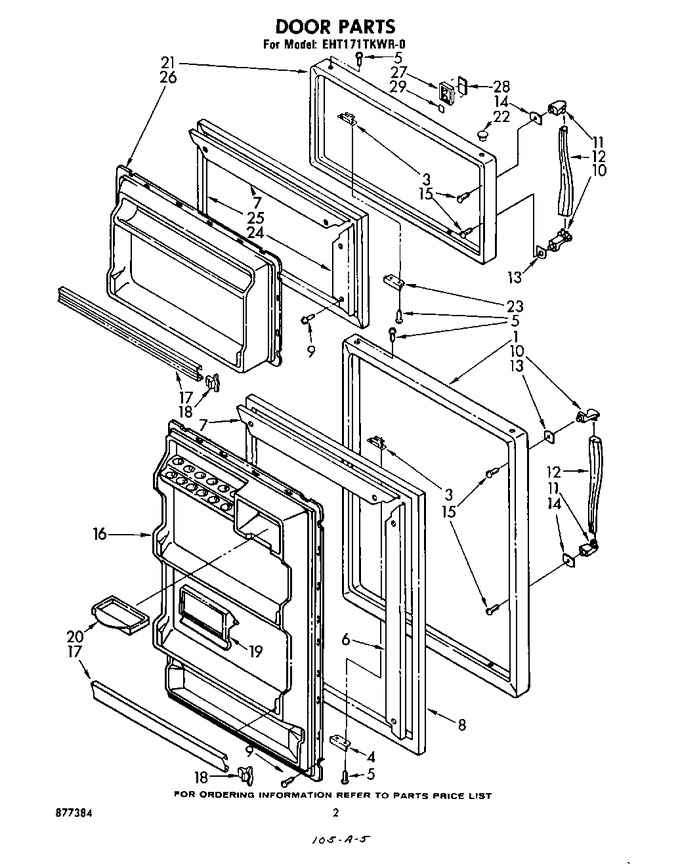

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944209 | Exterior Door Panel (golden Harvest) |
|
- | |||||
| 1 | 944211 | Exterior Door Panel (almond) |
|
- | |||||
| 1 | 944207 | Exterior Door Panel (white) |
|
- | |||||
| 1 | 944208 | Exterior Door Panel (coffee) |
|
- | |||||
| 1 | 944210 | Exterior Door Panel (avocado) |
|
- | |||||
| 3 | 940231 | Tap Plate |
|
- | |||||
| 4 | 940217 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, No.8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 6.98 | ||||
| 6 | 836117 | Retainer, Gasket Side |
|
- | |||||
| 7 | 836118 | Retainer, Gasket Top & Bottom |
|
- | |||||
| 8 | 2188450A | Gasket, Magnetic Door (Replaces: 986702) |
|
$ 243.50 | |||||
| 9 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.07 | ||||
| 9 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 10 | 982947 | Handle, End |
|
- | |||||
| 11 | 982948 | Handle, End |
|
- | |||||
| 12 | 982978 | Handle, Center |
|
- | |||||
| 13 | 941917 | Shim Handle |
|
- | |||||
| 14 | 941918 | Shim Handle |
|
- | |||||
| 15 | 488818 | Screw |
|
$ 42.82 | |||||
| 16 | 986896 | Interior, Door Panel |
|
- | |||||
| 17 | 982341 | Door, Trim (2) |
|
- | |||||
| 18 | 839975 | Retainer, Door Trim (4) |
|
$ 5.84 | |||||
| 19 | 983749 | Door, Butter |
|
- | |||||
| 20 | 520747 | Tray, Butter |
|
- | |||||
| 21 | 944205 | Exterior Door Freezer (almond) |
|
- | |||||
| 21 | 944202 | Exterior Door Freezer (coffee) |
|
- | |||||
| 21 | 944203 | Exterior Door Freezer (golden Harvest) |
|
- | |||||
| 21 | 944204 | Exterior Door Freezer (avocado) |
|
- | |||||
| 21 | 944201 | Exterior Door Freezer (white) |
|
- | |||||
| 22 | 835974 | Hole, Plug (white) |
|
- | |||||
| 22 | 989882 | Hole Plug (golden Harvest) |
|
- | |||||
| 22 | 989883 | Hole Plug (avocado) |
|
- | |||||
| 22 | 989193 | Hole, Plug (almond) |
|
- | |||||
| 22 | 989881 | Hole Plug (coffee) |
|
- | |||||
| 23 | 940216 | Bracket, Door Stop |
|
- | |||||
| 24 | 836119 | Retainer Gasket Side |
|
- | |||||
| 25 | 2188460A | Gasket Magnetic Door (Replaces: 986703) |
|
$ 198.44 | |||||
| 26 | 983155 | Interior Panel Freezer |
|
- | |||||
| 27 | 849310 | Escutcheon, Nameplate |
|
- | |||||
| 28 | 848308 | Insert, Nameplate |
|
- | |||||
| 29 | 877384 | List, Parts |
|
- | |||||
| 29 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 156.56 | ||||
| 29 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 106.15 | |||||
| 29 | 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 208.40 | |||||
| 29 | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 208.40 | |||||
| 29 | WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 10.96 | ||||
| 29 | 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | ||||
| 29 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | |||||
| 29 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 29 | 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 70.61 | |||||
| 29 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 29 | 799832 | Kit. Porcelain Repair (white) |
|
- | |||||
| 29 | 934325 | Service & Wiring Sheet |
|
- | |||||
| 29 | 944197 | Energy Guide |
|
- | |||||
| 29 | 944196 | Consumer Buy Guide |
|
- | |||||
| 29 | 944195 | Guide, Use & Care |
|
- | |||||
| 29 | 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | |||||
| 29 | 991259 | Tape Strip |
|
- | |||||
| 29 | DD81-03944A | Paint, Touch-up 1/2 Oz. (coffee) (Replaces: 72108) |
|
$ 98.33 | |||||
| 29 | DD81-03471A | Paint, Touch-up 1/2 Oz. (avocado) (Replaces: 72109) |
|
$ 54.25 | |||||
| 29 | DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | |||||
| 29 | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| 29 | 261887 | Enamel, Coffee (1 Qt. Uncut) |
|
- | |||||
| 29 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 29 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 29 | 261889 | Enamel, New Avocado (1 Qt. Uncut) |
|
- | |||||
| 29 | 261891 | Enamel, Golden Harvest (1 Qt. Uncut) |
|
- | |||||
| 29 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 29 | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 73.92 | ||||
| 29 | 479502 | Tape, Vinyl (1/4`` X 108``) |
|
$ 66.77 | |||||
| 29 | 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 208.40 | |||||
| 29 | 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | |||||
| 29 | 511873 | Paint, Touch-up 1/2 Oz. (white Porcelain) |
|
$ 44.36 | |||||
| 261886 | Xenamel, Coffee (13 Oz. Spray Can) |
|
- | ||||||
| 350942 | Primer White (13 Oz. Spray Can) |
|
$ 80.69 | ||||||
| 350941 | Xleveler, Enamel (13 Oz. Spray Can) |
|
- | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
Immediately | $ 51.34 | |||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 46.30 | ||||||
| 261890 | Xenamel, Golden Harvest (13 Oz. Spray Can) |
|
- | ||||||
| 261888 | Xenamel, New Avocado (13 Oz. Spray Can) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 |
