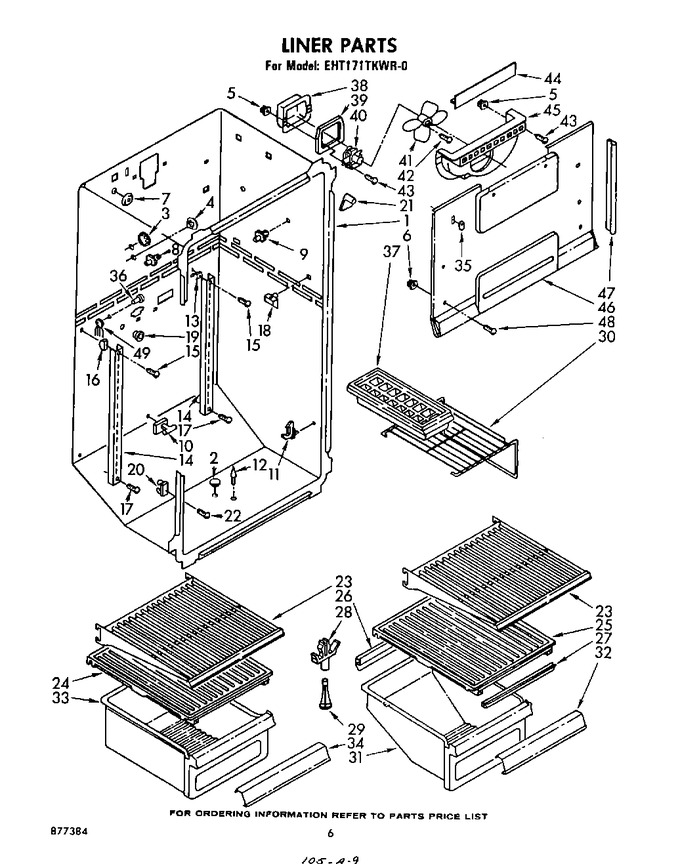

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 835370 | Drain Cover |
|
- | |||||
| 3 | 519890 | Hole Plug (5) |
|
- | |||||
| 4 | 659598 | Hole Plug (2) |
|
- | |||||
| 5 | 842339 | Grommet |
|
- | |||||
| 6 | 848445 | Grommet |
|
- | |||||
| 7 | 534348 | Grommet, Water Inlet |
|
- | |||||
| 8 | 982642 | Shelf Stud (2) |
|
- | |||||
| 9 | 536475 | Shelf Stud (2) |
|
$ 7.28 | |||||
| 10 | 836412 | Stud, Support Rear |
|
- | |||||
| 11 | 836423 | Shelf Stud (2) |
|
- | |||||
| 12 | 836409 | Grommet, Crisper Cover |
|
- | |||||
| 13 | 983604 | Screw Anchor (2) |
|
- | |||||
| 14 | 934267 | Shelf, Ladder (2) |
|
- | |||||
| 15 | 488357 | Screw, No.8 X 1/4 (2) |
|
- | |||||
| 16 | 520965 | Screw, Support (4) |
|
$ 26.87 | |||||
| 17 | 488960 | Screw, 8-32 X 1-1/4 |
|
- | |||||
| 18 | 836374 | Retainer, Stud (4) |
|
- | |||||
| 19 | 851020 | Grommet, Wiring |
|
- | |||||
| 20 | 539760 | Insulator Spacer |
|
- | |||||
| 21 | 836040 | Insulator Spacer |
|
- | |||||
| 22 | WP488163 | Screw, 8 X 13/16 (Replaces: 488208) |
|
$ 6.79 | |||||
| 23 | 936848 | Shelf, Cantilever |
|
- | |||||
| 24 | 845606 | Cover, Meat Pan |
|
- | |||||
| 25 | 836453 | Cover, Pan Slide |
|
- | |||||
| 26 | 840002 | Crisper Gasket, Rear |
|
- | |||||
| 27 | 840003 | Crisper Gasket, Front |
|
- | |||||
| 28 | 848562 | Support, Crisper |
|
$ 24.30 | |||||
| 29 | 836410 | Post, Crisper |
|
$ 5.84 | |||||
| 30 | 982313 | Wire, Shelf F.c. |
|
- | |||||
| 31 | 983812 | Pan, Crisper |
|
- | |||||
| 32 | 984745 | Overlay Pan |
|
- | |||||
| 33 | 987757 | Pan, Meat |
|
- | |||||
| 34 | 984744 | Overlay Pan |
|
- | |||||
| 35 | 659776 | Hole Plug, Evaporator |
|
- | |||||
| 36 | 850738 | Receptacle Cap |
|
- | |||||
| 37 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 41.00 | ||||
| 38 | 836474 | Fan Cover Motor |
|
- | |||||
| 39 | 836475 | Gasket, Cover |
|
- | |||||
| 40 | 482731 | Motor, Fan (Replaces: 548697) |
|
Immediately | $ 71.15 | ||||
| 41 | WP1100938 | Blade, Fan (Replaces: 548041) |
|
$ 79.08 | |||||
| 42 | 00487887 | Screw, 3-48 X 1/4 (Replaces: 487887) |
|
$ 220.32 | |||||
| 43 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 12.62 | |||||
| 44 | 935068 | Gasket, Sealing |
|
- | |||||
| 45 | 935067 | Scroll, Fan |
|
- | |||||
| 46 | 986628 | Cover, Evaporator |
|
- | |||||
| 47 | 981749 | Gasket Cover |
|
- | |||||
| 48 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 7.01 | ||||
| 49 | 481782 | Wiring (ice Maker) |
|
- |
