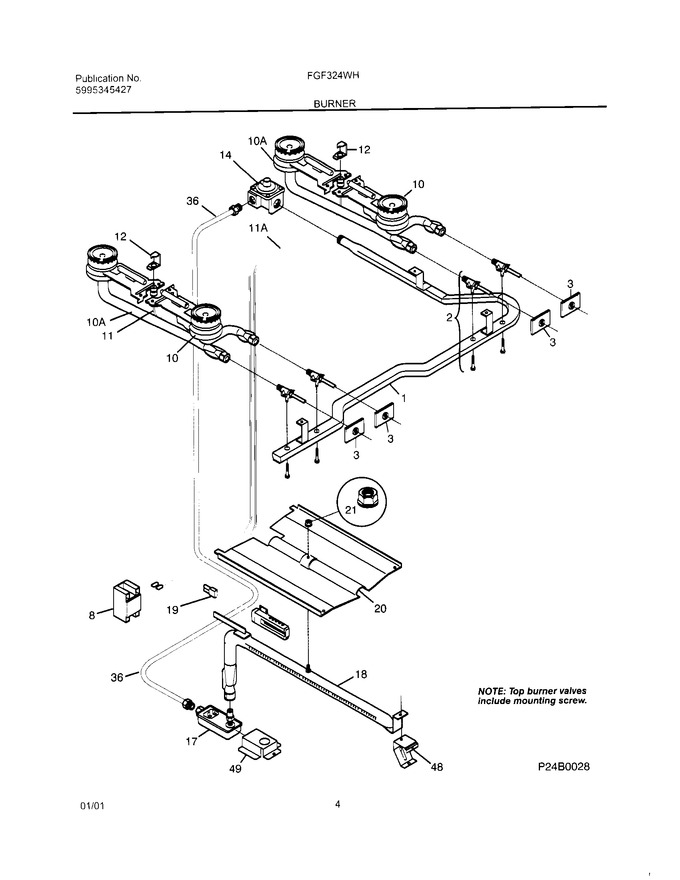

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316134400		Manifold Pipe		Appelez-nous	-
2	316134200		Valve-top Burner,natural Gas ,2 Position,(4)		Appelez-nous	-
3	316001828		Wiring Harness,ignitor ,with Switches				$ 220.61
8	5304518635		Spark Module   (Replaces: 316135700)				$ 87.21
10	5304506426		Burner-top,venturi Ring   (Replaces: 316103801)				$ 100.05
10	5304506427		Burner-top,venturi Ring   (Replaces: 316103800)				$ 101.63
11	316081705		Ignitor-top Burner   (Replaces: 316081703)				$ 94.27
11	316081705		Ignitor-top Burner,33``   (Replaces: 316081702)				$ 94.27
12	3016993		Retainer-ignitor		Appelez-nous	-
14	316082900		Regulator, Pressure				$ 563.58
17	3203459		Valve-safety				$ 303.64
18	316114300		Burner,oven				$ 169.88
19	5304509706		Ignitor-oven   (Replaces: 316119301)			Immediately	$ 189.59
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	316083000		Tubing, 3/8, Alum				$ 121.49
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
NI	316021104		Screw-regulator/brkt,hex ,8-18 X 3/8 ,nick, 3				$ 7.79
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 1/2 ,burner Box			Immediately	$ 13.46
