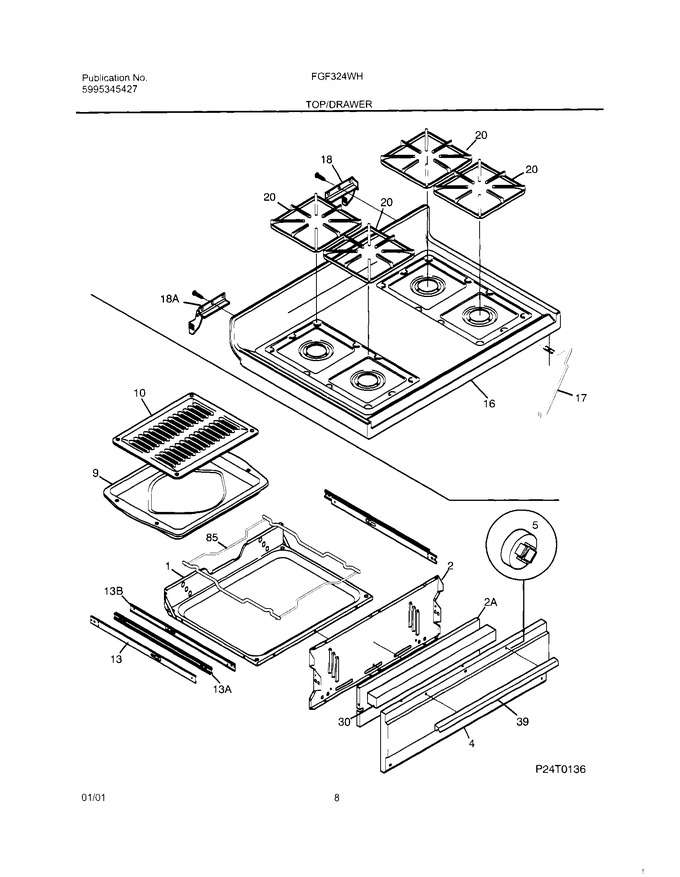

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316110201		Carriage, Broiler				$ 232.57
2	316110800		Shield,broiler		Appelez-nous	-
2	316110101		Liner-low Broil		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
5	316129100		Fastener-spacer,push-in Nut ,nylon		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
13	316111501		Glide-low Broil,outer		Appelez-nous	-
13	316111600		Glide-drawer,inner		Appelez-nous	-
13	316111502		Glide-low Broil, Inner		Appelez-nous	-
16	5303285552		Main Top, White		Appelez-nous	-
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
20	316088901		Grate, Gray, (4)				$ 147.84
30	316111400		Insulation,broiler Drawer		Appelez-nous	-
39	316019505		Handle-drawer, White				$ 82.27
85	316115600		Rack-low Broil				$ 105.47
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312 ,(2)				$ 6.62
NI	316021109		Screw-8-18 X 1/2 Tr Sqd White   (Replaces: 316021112)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,semi Gimlet ,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021120		Screw, 8-18 X 5/8 ,shoulder Sqdr				$ 13.28
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
