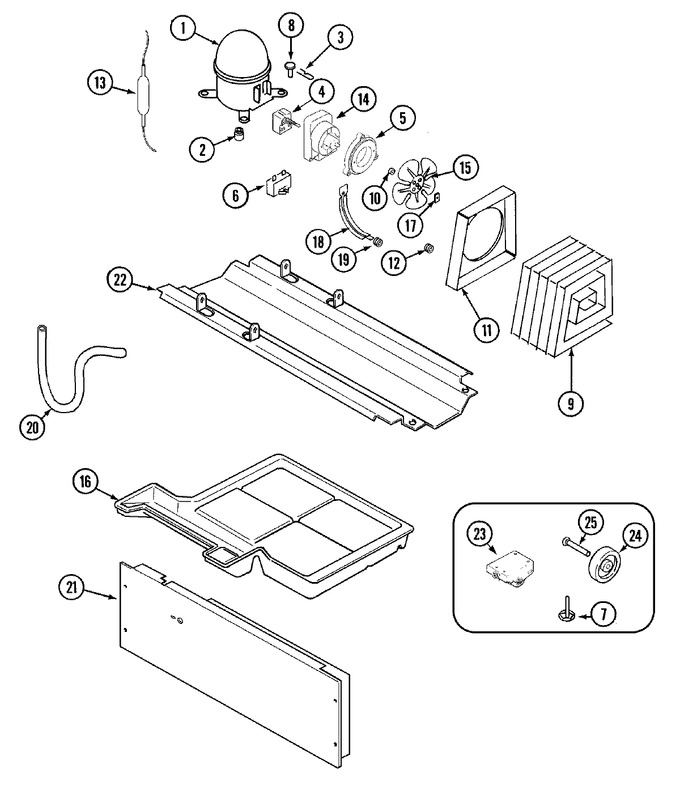

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12002059		Kit, Compressor	14	Appelez-nous	-
1	61006023		Wire Harness, Compressor	14	Appelez-nous	-
2	WP4387558		Grommet, Compressor   (Replaces: 61005241)	14			$ 6.26
3	61005561		Clip, Compressor	14	Appelez-nous	-
4	61006029		Clip, Retainer	14	Appelez-nous	-
4	WPW10398552		Relay/overload Assy.   (Replaces: 61006022)	14			$ 136.05
5	61005325		Adapter, Fan Motor	14			$ 23.75
5	61005326		Screw	14	Appelez-nous	-
6	WP489478		Screw   (Replaces: 400017-1)	14			$ 6.98
6	WP65889-4		Capacitor, Run   (Replaces: 65889-4)	14		Immediately	$ 55.03
7	61002014		Leg, Leveling	14	Appelez-nous	-
8	52656-2		Plug, Compressor	14	Appelez-nous	-
9	WP489399		Screw   (Replaces: 61004378)	14			$ 6.26
9	61005427		Condenser	14	Appelez-nous	-
10	61001686		Washer, Fan Blade	14	Appelez-nous	-
11	61001941		Shroud, Condenser	14	Appelez-nous	-
12	61002033		Grommet, Condenser Tubing	14	Appelez-nous	-
13	WPW10143759		Drier   (Replaces: 13900-1)	14		Immediately	$ 27.70
14	WP90767		Screw   (Replaces: 61005324)	14		Immediately	$ 7.04
14	61005323		Motor, Condenser Fan	14			$ 147.58
15	WP12587601		Blade, Condenser Fan   (Replaces: 60683-1)	14			$ 114.00
16	WP489478		Screw   (Replaces: 400017-1)	14			$ 6.98
16	61001955		Pan, Drain	14	Appelez-nous	-
17	WP486692		Clip, Fan Blade   (Replaces: 19914)	14			$ 7.04
18	69181-1		Bracket, Fan Motor	14	Appelez-nous	-
19	61004743		Grommet, Bracket	14			$ 5.51
20	61002214		Tube, Drain Trap	14	Appelez-nous	-
21	61004654		Cover, Compressor Compartment	14	Appelez-nous	-
21	61005388		Screw	14			$ 11.43
21	WP33002917		Screw   (Replaces: 65275-1)	14		Immediately	$ 6.90
22	WP67006715		Screw   (Replaces: 61002407)	14			$ 6.47
22	61005272		Pan, Compressor Mtg.	14	Appelez-nous	-
23	61005232		Wheel Assy. (frt)	14	Appelez-nous	-
23	W11233072		Screw   (Replaces: 61005165)	14		Immediately	$ 12.62
23	W11233072		Screw   (Replaces: 400016-1)	14		Immediately	$ 12.62
24	WP61003826		Wheel (rear)   (Replaces: 61003826)	14			$ 6.71
25	61002104		Pin, Wheel	14			$ 5.70
NI	12001492		Yoder Loop Heater Repair (115v	14			$ 259.89
NI	61003420		Manual, Use & Care	14	Appelez-nous	-
NI	16008248		Manual, Service-no Refund	14	Appelez-nous	-
