SELECT A DIAGRAM

01 - Compressor (ctl/ctn1911gew Rev.14)


02 - Compressor (ctl1911/ctn1911 Rev.10-13)


03 - Controls


04 - Freezer Compartment


05 - Freezer Inner Door


06 - Freezer Outer Door


07 - Fresh Food Inner Door


08 - Fresh Food Outer Door


09 - Shelves & Accessories


10 - Wiring Information

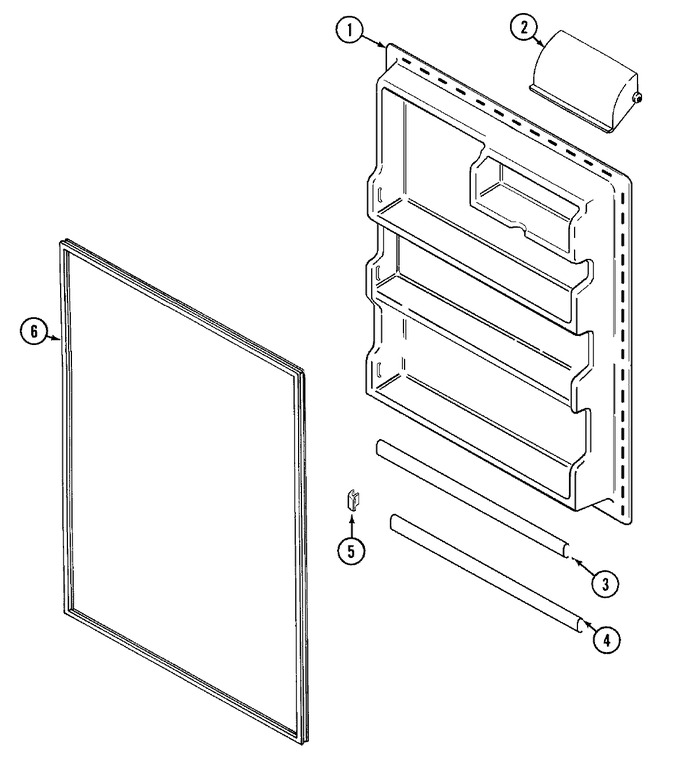

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61005388		Screw	10			$ 11.43
1	61002828		Insert, Liner Support	10			$ 6.29
1	61002741		Insert, Liner Support	10			$ 30.66
1	61002401		Liner, F.f. Door	10	Appelez-nous	-
2	61002023		Door, Dairy	10	Appelez-nous	-
3	W11045462		Trim, Shelf (23.5``)   (Replaces: 61002400)	10			$ 69.47
4	W11045462		Trim, Shelf (24``)   (Replaces: 61002399)	10			$ 69.47
5	WP61002112		End Cap, Shelf Trim   (Replaces: 61002112)	10		Immediately	$ 14.71
6	WP61004008		Seal, F.f. Door (wht)   (Replaces: 61004008)	10			$ 225.26
