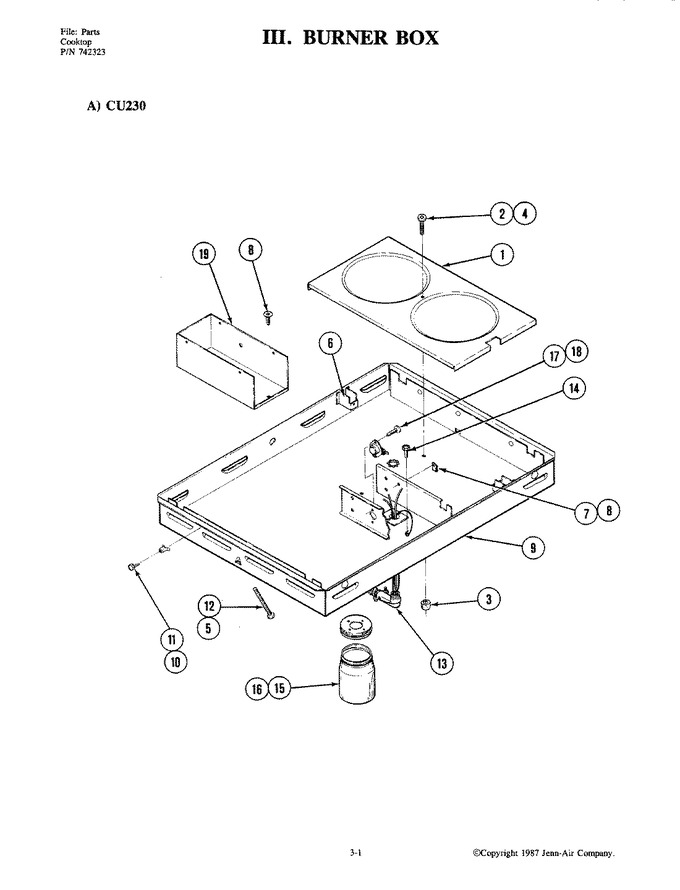

01 - Burner Box
02 - Cooling Fan
03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y707822 | Insert, Burner Box | 1 |
|
- | ||||
| 2 | Y707402 | Screw | 1 |
|
- | ||||
| 3 | 703293 | Palnut | 1 |
|
- | ||||
| 4 | 715938 | Pad, Spacer | 1 |
|
- | ||||
| 5 | M0282009 | Nut,square (Replaces: Y707124) | 1 |
|
$ 12.06 | ||||
| 6 | 703008 | Bracket, Top Support | 1 |
|
- | ||||
| 7 | 712254 | Clamp, Cable | 1 |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 9 | 712351 | Box, Burner | 1 |
|
- | ||||
| 10 | Y700503 | Clip, Retainer | 1 |
|
- | ||||
| 11 | WP90767 | Screw (Replaces: Y700502) | 1 |
|
Immediately | $ 7.04 | |||
| 12 | Y707121 | Screw | 1 |
|
- | ||||
| 13 | 703990 | Wire Cable Assy | 1 |
|
- | ||||
| 14 | WP71001171 | Screw, Ground (Replaces: Y703817) | 1 |
|
$ 6.26 | ||||
| 15 | WPY707869 | Jar, Drain (Replaces: Y707869) | 1 |
|
$ 61.43 | ||||
| 16 | Y707870 | Lid, Jar | 1 |
|
- | ||||
| 17 | 703988 | Limit, Thermal | 1 |
|
- | ||||
| 18 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 19 | 703949 | Plenum, Updraft | 1 |
|
- |
