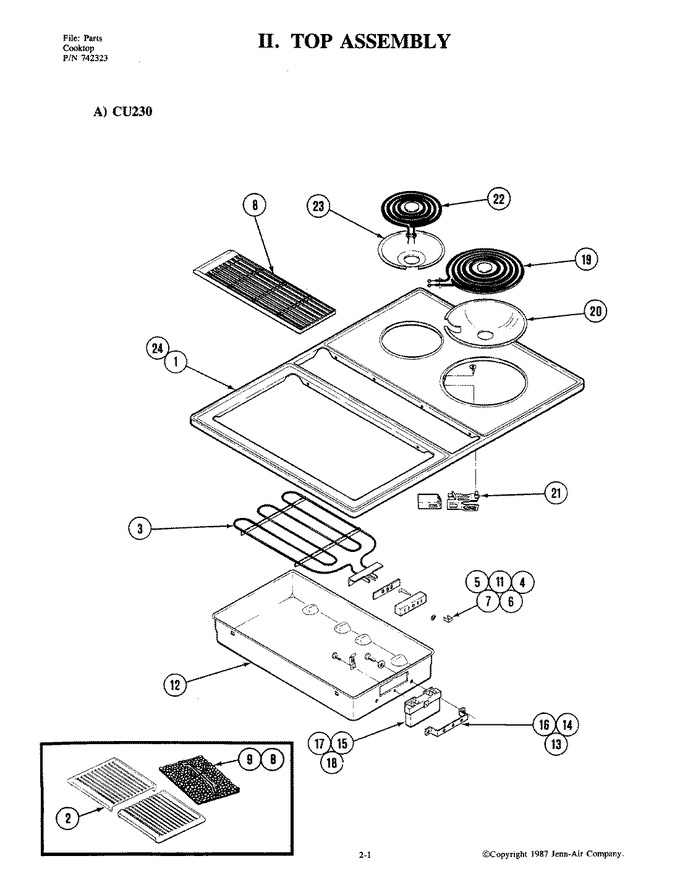

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Burner Box
02 - Cooling Fan
03 - Escutcheon Assembly
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 704170 | Top | 1 |
|
- | ||||
| 2 | 703905 | Grate, Grill | 1 |
|
- | ||||
| 3 | 703943 | Element, Complete, 240v | 1 |
|
- | ||||
| 4 | Y700449 | Insulator | 1 |
|
- | ||||
| 5 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 6 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 7 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 8 | 703926 | Grill, Air (blk) | 1 |
|
- | ||||
| 9 | 708929 | Plate, Rock | 1 |
|
- | ||||
| 11 | Y704166 | Spade, Contact (wht) | 1 |
|
- | ||||
| 12 | 712356 | Wire Kit | 1 |
|
- | ||||
| 12 | 712147 | Side Panel | 1 |
|
- | ||||
| 12 | Y712200 | Wire, Yellow | 1 |
|
- | ||||
| 12 | 701955 | Pan, Grill (lt) | 1 |
|
- | ||||
| 12 | Y712203 | Wire, Violet | 1 |
|
- | ||||
| 12 | 712354 | Wire, Blue | 1 |
|
- | ||||
| 13 | WP59002061 | Screw (Replaces: Y707172) | 1 |
|
$ 6.98 | ||||
| 14 | Y707664 | Washer | 1 |
|
- | ||||
| 15 | 704168 | Receptacle, Ceramic | 1 |
|
- | ||||
| 16 | Y702698 | Bracket | 1 |
|
- | ||||
| 17 | 74004835 | Clip (Replaces: Y702699) | 1 |
|
$ 11.37 | ||||
| 18 | WP489128 | Screw (Replaces: Y707341) | 1 |
|
$ 9.79 | ||||
| 19 | WP660533 | Element, Conv. 9`` (Replaces: Y703421) | 1 |
|
Immediately | $ 39.47 | |||
| 20 | 715878 | Pan, Drip (8``) | 1 |
|
Immediately | $ 21.16 | |||
| 21 | 12001676 | Rewire Kit (Replaces: Y712361) | 1 |
|
Immediately | $ 28.45 | |||
| 22 | WPY04100165 | Element, Conv. 6`` (Replaces: Y703422) | 1 |
|
Immediately | $ 50.62 | |||
| 23 | 715877 | Pan, Drip (6``) | 1 |
|
Immediately | $ 19.39 | |||
| 24 | W11233072 | Screw (Replaces: Y707347) | 1 |
|
Immediately | $ 12.62 | |||
| NI | 700819 | Support, Rock Plate | 1 |
|
$ 71.81 |
