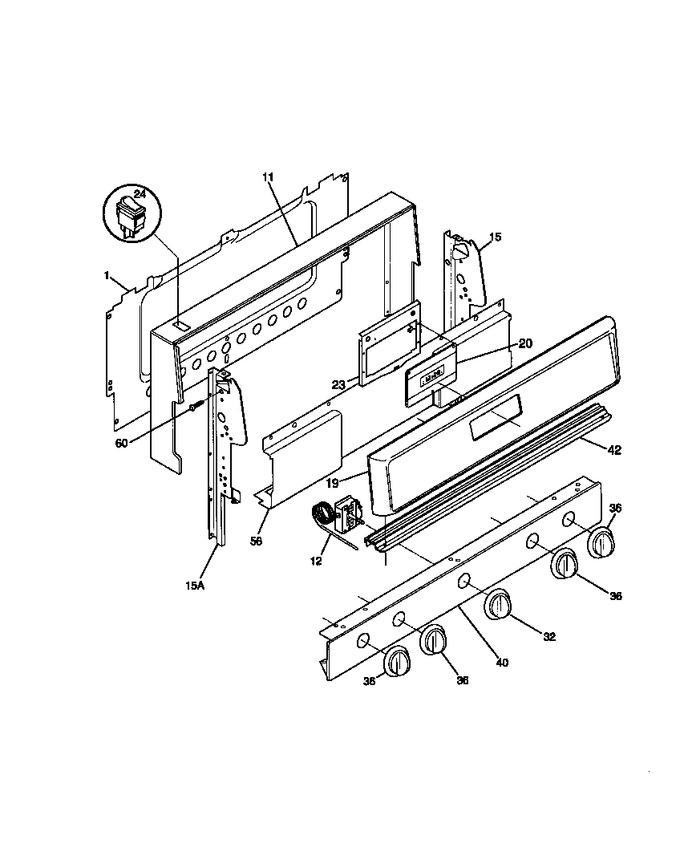

02 - Backguard
03 - Burner
04 - Body
05 - Top/drawer
06 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028701 | Shield-backguard, Rear Wall |
|
- | |||||
| 11 | 316061815 | Trim-wrapper, Black |
|
- | |||||
| 12 | 316032411 | Thermostat-oven (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 15 | 316023111 | Support-backguard, Lh |
|
- | |||||
| 15 | 316023110 | Support-backguard, Rh |
|
- | |||||
| 19 | 316024405 | Panel-control, Metal |
|
- | |||||
| 20 | 316066800 | Clock/timer, Electronic |
|
- | |||||
| 23 | 316033203 | Bracket-clock Mtg |
|
- | |||||
| 24 | 5304527841 | Switch-light/lamp, Rocker Type, Black, (2) (Replaces: 316005602) |
|
Immediately | $ 11.38 | ||||
| 32 | 316053600 | Knob-thermostat |
|
- | |||||
| 36 | 316049300 | Knob-top Valve, (4) |
|
- | |||||
| 40 | 316009267 | Panel-manifold |
|
- | |||||
| 42 | 316055200 | Trim-vent |
|
- | |||||
| 56 | 316074902 | Deflector-flue, Black |
|
- | |||||
| 60 | 5303288574 | Screw, Truss Head, 8-10 X 3/8 |
|
- | |||||
| *32160 | 316021109 | Screw,hex, 8-18 X 3/8, Back\bodyside (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| *32161 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- |
