SELECT A DIAGRAM

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door

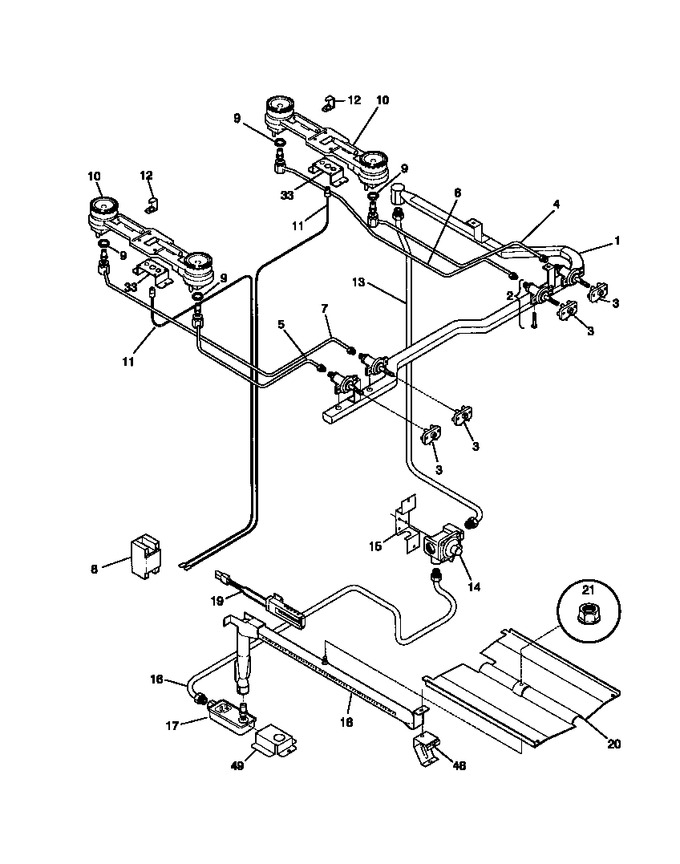

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316066201		Manifold Pipe				$ 65.47
4	316051400		Tube-burner, Rf		Appelez-nous	-
5	316051401		Tube-burner, Lf				$ 147.84
6	316051402		Tube-burner, Rr		Appelez-nous	-
7	316051403		Tube-burner, Lr				$ 149.19
8	5303200669		Spark Module		Appelez-nous	-
9	3013279		Nut, Special, 4				$ 2.34
10	316057100		Burner-top Double				$ 110.99
12	3016993		Retainer-igniter		Appelez-nous	-
13	316065005		Tube, Aluminum, Rgltr To Manf, With Fittings				$ 91.51
15	08067934		Bracket-regulator		Appelez-nous	-
16	316065006		Tube-valve To Rgltr, 3/8				$ 122.09
17	3203459		Valve-safety				$ 303.64
18	3131439		Burner-oven				$ 204.59
19	5303935066		Igniter-oven   (Replaces: 5303131300)			Immediately	$ 59.58
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
33	3200277		Bracket-burner		Appelez-nous	-
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
11A	3200276		Igniter-top Burner, Base, (2)		Appelez-nous	-
11B	5303289336		Igniter-top Burner, Base, (2)		Appelez-nous	-
14A	5303935125		Regulator-pressure   (Replaces: 316054806)				$ 441.55
14B	316021104		Screw-regulator/brkt, Hex, 8-18 X 3/8, Nick, 3 (not Illustrated)				$ 7.79
2A	316050601		Valve, Top Burner, 3 Position, (4), W/screw		Appelez-nous	-
2B	316048200		Screw-top Valve Mtg, Hex Washer Head, 1/4-20 X 0.31, (4), W/gasket (not Illustrated)		Appelez-nous	-
3A	316032000		Switch-igniter, (4)				$ 58.70
3B	5303935040		Switch Harness Terminal Kit (not-illustrated)				$ 49.67

    View Diagram in Separate Window       Print Part List
