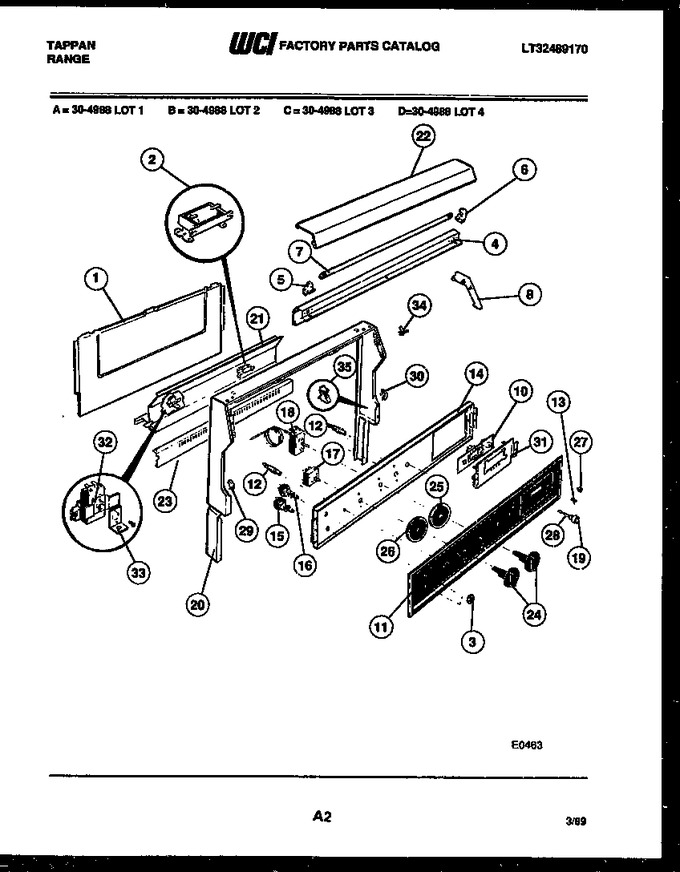

02 - Backguard
03 - Cooktop Parts
04 - Drawer Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131123 | Shield, Rear Wall |
|
- | |||||
| 2 | 3051115 | Ballast |
|
- | |||||
| 3 | 045T071P01 | Bezel, Switch |
|
- | |||||
| 4 | 3131277 | Support, Fluorescent |
|
- | |||||
| 5 | 3051222 | Receptacle-fluor Lt |
|
- | |||||
| 6 | 3051223 | Recept - Fluor Lt |
|
- | |||||
| 7 | 3131275 | Bulb-fluor |
|
$ 49.40 | |||||
| 8 | 3051134 | Cap End-lh-trim Canopy |
|
- | |||||
| 10 | 3131722 | Electric Clock |
|
- | |||||
| 11 | 3131888 | Glass-control Pnl |
|
- | |||||
| 12 | 318T023P11 | Indicator Light (3) |
|
- | |||||
| 13 | 358T206P01 | Knob Electric Clock |
|
- | |||||
| 14 | 554T400F02-18 | Plate Instr. Mtg. |
|
- | |||||
| 15 | 695T211P02 | Switch - Oven Light |
|
- | |||||
| 16 | 3051312 | Switch Fluor Lt |
|
- | |||||
| 17 | 5303212678 | Switch - Select |
|
- | |||||
| 18 | 3131964 | Thermo-bake |
|
- | |||||
| 19 | 3131730 | Button-clock (4) |
|
- | |||||
| 20 | 3016852 | Trim-wrapper |
|
- | |||||
| 21 | 3131955 | Trim-splasher |
|
- | |||||
| 22 | 3131466 | Trim, Canopy |
|
- | |||||
| 23 | 3131241 | Trim-vent |
|
- | |||||
| 24 | 3051188 | Knob-control (2) |
|
- | |||||
| 25 | 3131933 | Dial Thermostat |
|
- | |||||
| 26 | 3131932 | Dial - Select |
|
- | |||||
| 27 | 3051194 | Nut - Decor (2) |
|
- | |||||
| 28 | 3051347 | Shaft Timer |
|
- | |||||
| 29 | 123T120P03 | Cap Lh |
|
- | |||||
| 30 | 123T120P04 | Cap Rh |
|
- | |||||
| 31 | 3131556 | Plate-timer Mtg |
|
- | |||||
| 32 | 722T071P01 | Thermo Oven S/c |
|
- | |||||
| 33 | 3131467 | Angle S/c Thermo Mtg |
|
- | |||||
| 34 | 241T049P01 | Fastener-glass (2) |
|
- | |||||
| 35 | 3131237 | Supt - Backguard (2) |
|
- | |||||
| 27A | 615T030P03 | Rivet Accordian (non-illustrated) |
|
- | |||||
| 27B | 655T444P01 | Shield Backguard (non-illustrated) |
|
- | |||||
| 31A | 3051304 | Spacer-dial (non-illustrated) |
|
- | |||||
| 34A | 479T069P08 | Nut (10-24) (non-illustrated) |
|
- | |||||
| 8A | 3051135 | Cap End-rh-trim Canopy |
|
- |
