SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Drawer Parts

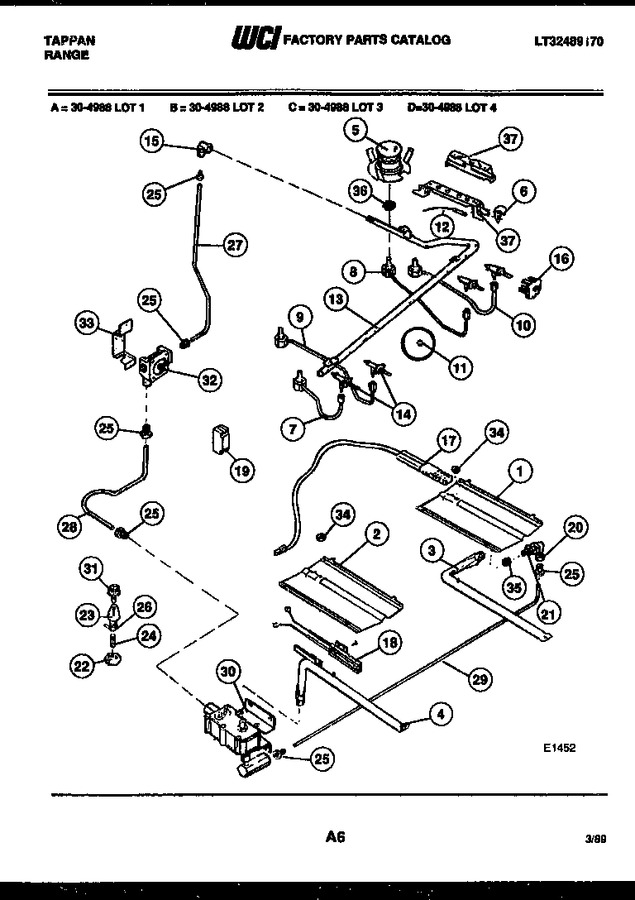

05 - Burner, Manifold And Gas Control


06 - Body Parts


07 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131283		Baffle, Broil		Appelez-nous	-
2	3131284		Baffle-oven				$ 155.77
3	079T028P01		Burner, Broiler		Appelez-nous	-
4	3131290		Burner-oven		Appelez-nous	-
5	079T032S02		Burner, Top		Appelez-nous	-
6	612T119F01		Retainer, Igniter (4)		Appelez-nous	-
7	079T033H01		Burner Tube (lf)		Appelez-nous	-
8	079T033H02		Burner, Tube		Appelez-nous	-
9	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
10	079T033H04		Burner, Tube, Right Front		Appelez-nous	-
11	247T074P01		Ferrule (4)		Appelez-nous	-
12	316T034P02		Igniter, Top 50`` (4)		Appelez-nous	-
15	215T013P01		Elbow 1/2 Np X 9/16-24		Appelez-nous	-
16	3131580		Switch, Igniter (4)		Appelez-nous	-
17	316T023P12		Igniter-broiler Burner		Appelez-nous	-
18	3131300		Igniter, Oven		Appelez-nous	-
19	316T033P01		Igniter, Module		Appelez-nous	-
20	455T008P02		Mixer, Elbow		Appelez-nous	-
21	3131358		Nut-hex		Appelez-nous	-
25	3131261		Fitting, Loxit (6)		Appelez-nous	-
27	750T085H09		Tube Alum 3/8		Appelez-nous	-
28	3131109		Tube Alum 3/8		Appelez-nous	-
29	3131364		Tube Alum 3/8		Appelez-nous	-
30	774T116P11		Valve, Safety-dual		Appelez-nous	-
32	166T011P01		Control, Regulator		Appelez-nous	-
33	3131110		Bracket, Regulator		Appelez-nous	-
34	479T069P03		Nut		Appelez-nous	-
35	499T015P08		Spud - 50		Appelez-nous	-
36	479T069P40		Nut Special		Appelez-nous	-
37	072T839F02		Bracket, Ignition		Appelez-nous	-
*11489	3051420		Pop Rivet		Appelez-nous	-
15A	3131148		Nut Compressor (4) (non-illustrated)		Appelez-nous	-
30A	3131598		Washer (repair) (non-illustrated)		Appelez-nous	-
36A	3131956		Spacer - Baffle (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
