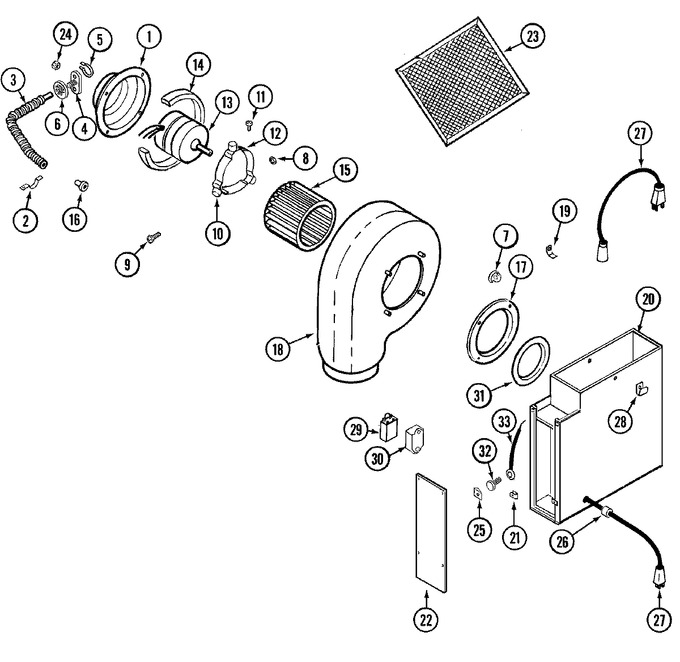

01 - Blower Motor-blower/plenum
02 - Body
03 - Control Panel
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y712550 | Motor Cover Assy | 11 |
|
- | ||||
| 1 | Y704968 | Cover, Motor | 11 |
|
- | ||||
| 2 | 712310 | Tinnerman | 11 |
|
- | ||||
| 3 | Y705155 | Conduit, Metal | 11 |
|
- | ||||
| 4 | Y705154 | Connector | 11 |
|
- | ||||
| 5 | 715780 | Clamp, Cable | 11 |
|
- | ||||
| 6 | Y707335 | Clip | 11 |
|
- | ||||
| 7 | 702889 | Locknut Cap, W/nylon Insert | 11 |
|
- | ||||
| 8 | 707161 | Nut | 11 |
|
- | ||||
| 9 | Y707402 | Screw | 11 |
|
- | ||||
| 10 | WP71003558 | Isolator (Replaces: Y708926) | 11 |
|
$ 11.47 | ||||
| 11 | 707407 | Screw | 11 |
|
$ 6.42 | ||||
| 12 | Y707393 | Band, Motor | 11 |
|
- | ||||
| 13 | Y705032 | Motor, Blower | 11 |
|
$ 254.76 | ||||
| 14 | Y715957 | Foam, Urethane | 11 |
|
- | ||||
| 15 | WPY707985 | Wheel, Blower (Replaces: Y707985) | 11 |
|
Immediately | $ 145.55 | |||
| 16 | 712311 | Bushing | 11 |
|
- | ||||
| 17 | Y704758 | Ring, Inlet | 11 |
|
- | ||||
| 18 | 712008 | Scroll, Blower Assy. | 11 |
|
- | ||||
| 19 | Y707688 | Retainer, Filter | 11 |
|
- | ||||
| 20 | 04100812 | Plenum Weld Assy. | 11 |
|
- | ||||
| 21 | 00705463 | Clip (Replaces: 705463) | 11 |
|
Immediately | $ 445.30 | |||
| 22 | 704547 | Plate, Cover | 11 |
|
- | ||||
| 23 | WP707929 | Filter, Grease (Replaces: 707929) | 11 |
|
Immediately | $ 44.51 | |||
| 24 | WPY707702 | Locknut (Replaces: Y707702) | 11 |
|
Immediately | $ 6.26 | |||
| 25 | 701958 | Clip, Tinnerman | 11 |
|
- | ||||
| 26 | Y04100254 | Relief, Strain | 11 |
|
- | ||||
| 27 | Y04100253 | Cord, Power | 11 |
|
- | ||||
| 28 | Y700556 | Clip, J | 11 |
|
- | ||||
| 29 | Y704541 | Relay | 11 |
|
- | ||||
| 30 | 8215557 | Module, Spark (Replaces: Y04100810) | 11 |
|
Immediately | $ 124.99 | |||
| 30 | 04100809 | Bracket, Spark Module | 11 |
|
- | ||||
| 31 | Y704761 | Ring, Restrictor | 11 |
|
- | ||||
| 32 | WP71001171 | Screw (Replaces: Y04100522) | 11 |
|
$ 6.26 | ||||
| 33 | Y04100811 | Harness, Wire | 11 |
|
- | ||||
| 33 | Y705273 | Connector, Crimp | 11 |
|
- | ||||
| 33 | Y04100256 | Wire Green | 11 |
|
- | ||||
| 33 | Y705274 | Insulator, Splice Cap | 11 |
|
- | ||||
| 33 | 04100248 | Wire, Ground | 11 |
|
- |
