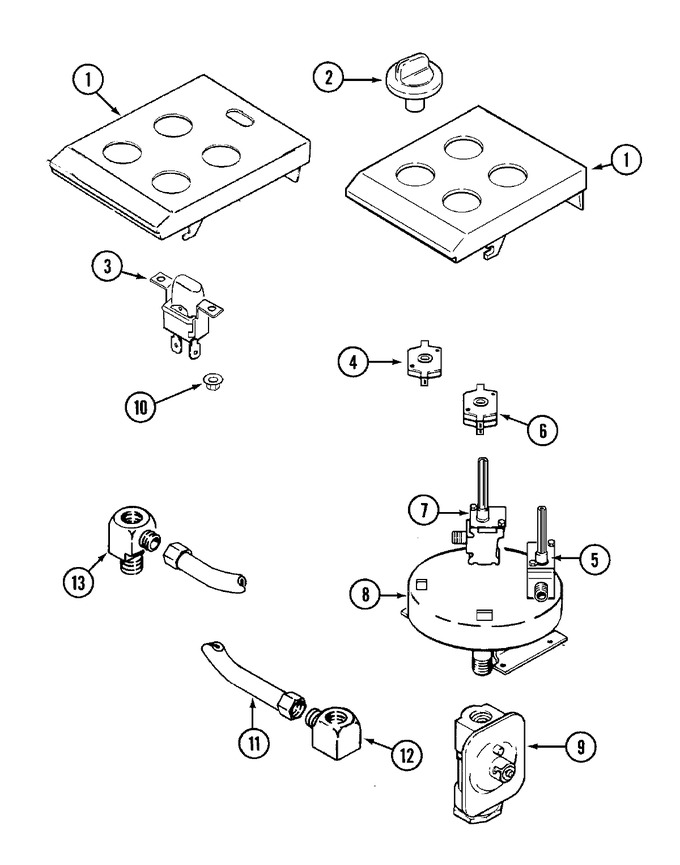

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y04100813 | Escutcheon | 11 |
|
- | ||||
| 1 | 71001679 | Shield, Moisture | 11 |
|
- | ||||
| 1 | 04100798 | Escutcheon (black) | 11 |
|
- | ||||
| 2 | WP71001641 | Knob, Switch (blk) (Replaces: 705437) | 11 |
|
Immediately | $ 15.68 | |||
| 3 | Y704573 | Switch, Fan (blk) | 11 |
|
- | ||||
| 4 | WPY704512 | Switch, Valve (rt) (Replaces: Y704512) | 11 |
|
$ 98.02 | ||||
| 4 | Y704269 | Switch, Valve (lh) | 11 |
|
- | ||||
| 5 | 04100818 | Valve Gas (lt) | 11 |
|
- | ||||
| 5 | WP7502P382-60 | Valve, Gas (rt) (Replaces: Y04100183) | 11 |
|
$ 240.81 | ||||
| 6 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 11 |
|
$ 98.42 | ||||
| 7 | WPY04100188 | Valve, Gas (lt) (Replaces: Y04100188) | 11 |
|
$ 222.85 | ||||
| 8 | 04100803 | Manifold (right) | 11 |
|
- | ||||
| 8 | Y04100807 | Manifold | 11 |
|
- | ||||
| 9 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 215.01 | |||
| 10 | Y04100035 | Nut, Push | 11 |
|
- | ||||
| 11 | Y04100787 | Tube, Crossover | 11 |
|
- | ||||
| 12 | Y04100790 | Elbow, Adapter | 11 |
|
- | ||||
| 13 | Y04100789 | Tee, Pipe | 11 |
|
- | ||||
| 13 | Y04100687 | Lp Conversion Kit | 11 |
|
- | ||||
| NI | 704556 | Harness, Wire | 11 |
|
$ 26.15 | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- | ||||
| NI | 206923A | Manual, Use & Care Cg205/cg206 | 11 |
|
- |
