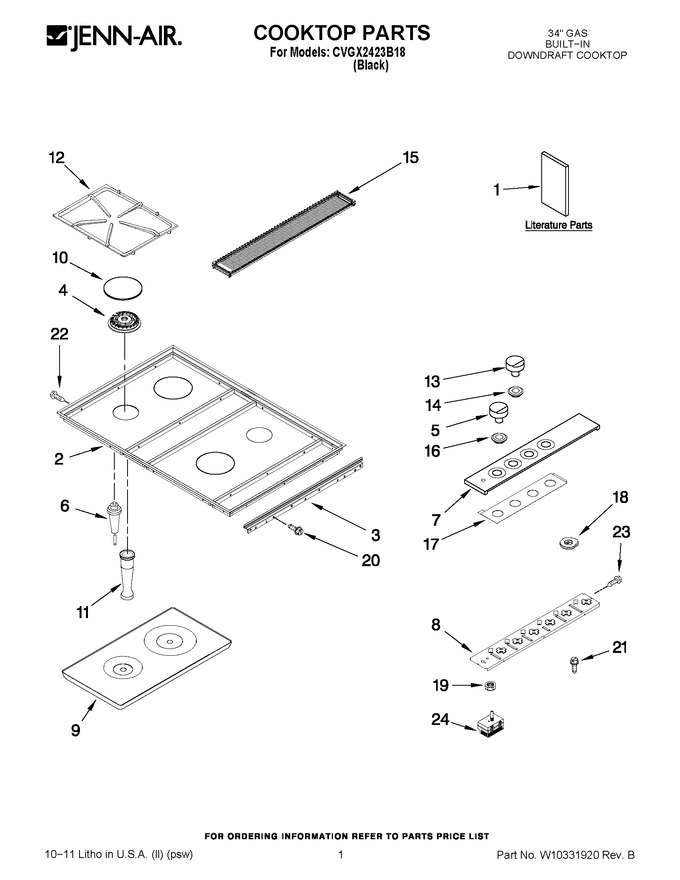

01 - Cooktop Parts
02 - Blower Unit Parts
03 - Burner Box, Gas Valves, & Switches
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P575-60 | Installation Instructions |
|
- | |||||
| 1 | 8119P010-60 | Wiring Diagram |
|
- | |||||
| 1 | 8111P422-60 | Use & Care Guide (english) |
|
- | |||||
| 1 | 8111P423-60 | Use & Care Guide (french) |
|
- | |||||
| 1 | 8101P183-60 | Ducting Instructions (english) |
|
- | |||||
| 1 | 8101P189-60 | Ducting Instructions (french) |
|
- | |||||
| 1 | 8106P068-60 | Card, Flow Tester |
|
$ 6.65 | |||||
| 2 | 7746P051-60 | Top, Main |
|
- | |||||
| 3 | 3801F428-80 | Bracket, Panel |
|
$ 32.22 | |||||
| 4 | WP7540P028-60 | Head, Burner (lf/rr) (Replaces: 7540P028-60) |
|
$ 48.41 | |||||
| 4 | 7540P030-60 | Head, Burner (lr/rf) |
|
$ 43.48 | |||||
| 5 | W11715914 | Knob, Fan (black) (Replaces: 7739P062-60) |
|
Immediately | $ 36.14 | ||||
| 6 | WP7432P109-60 | Ignitor (Replaces: 7432P109-60) |
|
$ 47.83 | |||||
| 7 | 7918P354-60 | Panel, Control (black) |
|
- | |||||
| 8 | 3605W287-51 | Plate, Switch |
|
$ 38.86 | |||||
| 9 | 3424F017-09 | Pan, Aeration |
|
$ 150.24 | |||||
| 10 | 7504P157-60 | Cap, Burner (lr/rf) |
|
$ 38.10 | |||||
| 10 | 7504P145-60 | Cap, Burner (lf/rr) |
|
$ 59.49 | |||||
| 11 | WP7538P003-60 | Venturi (Replaces: 7538P003-60) |
|
$ 88.55 | |||||
| 12 | 7518P389-60 | Grate, Burner |
|
- | |||||
| 13 | WP71002372 | Knob, Control (black) (Replaces: 7733P175-60) |
|
Immediately | $ 18.16 | ||||
| 14 | 8008P061-60 | Grommet (black) |
|
$ 7.82 | |||||
| 15 | 7772P004-60 | Grille, Air (black) |
|
- | |||||
| 16 | 8008P057-60 | Grommet, Fan |
|
- | |||||
| 17 | 7730P015-60 | Lens, Light |
|
- | |||||
| 18 | 7422P006-60 | Box, Light |
|
- | |||||
| 19 | 7103P177-60 | Nut, 3/8-32 Hex |
|
- | |||||
| 20 | WP90767 | Screw, 8ab-18x.37 (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 21 | W11233072 | Screw, 8-18 X.38 (Replaces: 7101P428-60) |
|
Immediately | $ 12.62 | ||||
| 22 | WPY706189 | Screw, 8-18 X.38 (Replaces: 7101P427-60) |
|
Immediately | $ 6.47 | ||||
| 23 | W11206744 | Screw, 6ab X1/4 (Replaces: 7101P394-60) |
|
$ 12.20 | |||||
| 24 | WP7403P876-60 | Switch, Fan (Replaces: 7403P876-60) |
|
$ 182.22 |
