01 - Cooktop Parts

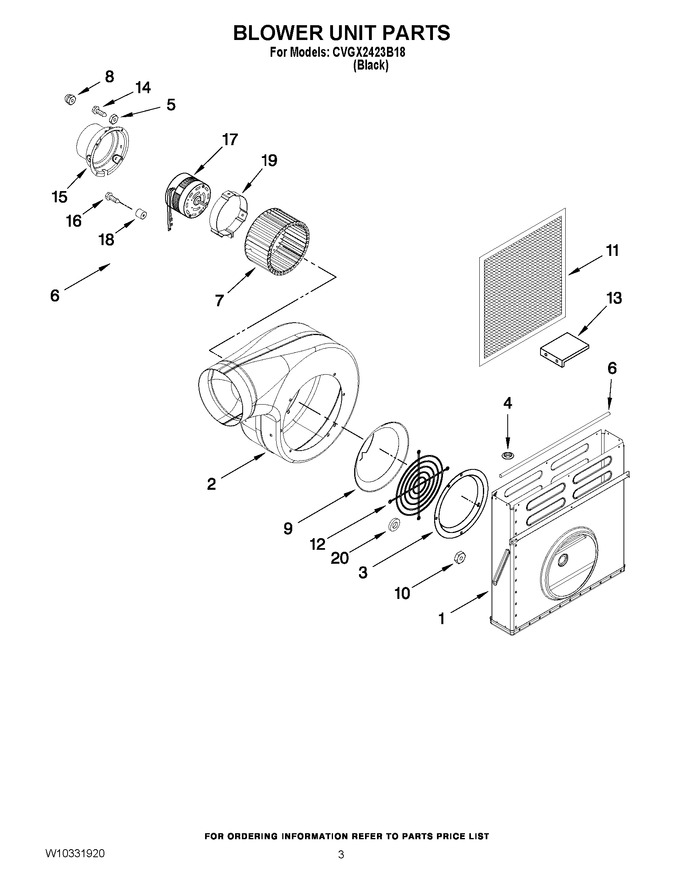

02 - Blower Unit Parts
03 - Burner Box, Gas Valves, & Switches
04 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2801W002-80 | Assy, Plenum |
|
- | |||||
| 2 | 2822W001-80 | Blwr Assy, Scroll |
|
- | |||||
| 3 | 4026F008-51 | Ring, Inlet |
|
$ 7.43 | |||||
| 4 | 7718P023-60 | Plug, Hole |
|
$ 8.98 | |||||
| 5 | WP7103P027-60 | Nut, 10-32x.375 (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| 6 | 7212P054-60 | Seal, Rope Complete Assembly |
|
- | |||||
| 7 | WPY707985 | Wheel, Blower (Replaces: 7114P005-60) |
|
Immediately | $ 145.55 | ||||
| 8 | 7103P192-60 | Nut, Acorn |
|
- | |||||
| 9 | 4026F009-51 | Ring, Restrictor |
|
$ 51.50 | |||||
| 10 | WPY707702 | Nut (Replaces: 7103P162-60) |
|
Immediately | $ 6.26 | ||||
| 11 | WPY706012 | Filter, Grease (Replaces: 8310P004-60) |
|
Immediately | $ 57.29 | ||||
| 12 | 8312P151-60 | Guard, Blower |
|
- | |||||
| 13 | 3801F427-80 | Bracket, Filler |
|
- | |||||
| 14 | 7101P326-60 | Screw |
|
- | |||||
| 15 | 4005F513-80 | Cover, Motor |
|
$ 33.10 | |||||
| 16 | WP4159193 | Screw, 10-24 X1/4 (Replaces: 7101P115-60) |
|
$ 4.29 | |||||
| 17 | 7409P011-60 | Motor, Blower |
|
$ 240.65 | |||||
| 18 | WP71003558 | Isolator, Motor (Replaces: 8038P002-60) |
|
$ 11.47 | |||||
| 19 | 3415F003-51 | Band, Motor |
|
$ 41.94 | |||||
| 20 | 7109P086-60 | Washer |
|
- | |||||
| NI | 7402P105-60 | Cord, Power Female |
|
- | |||||
| NI | 7402P096-60 | Cord, Power Male |
|
- |
