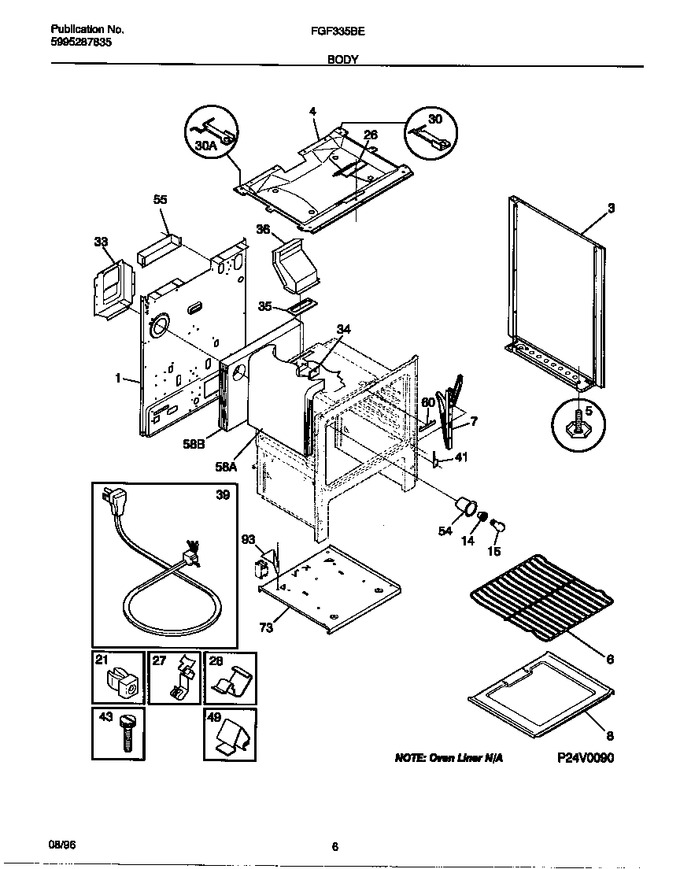

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316029412 | Back-main |
|
- | |||||
| 3 | 316081012 | Panel-bodyside, White, Rh |
|
- | |||||
| 3 | 316081013 | Panel-bodyside, White, Lh (not Illustrated) |
|
- | |||||
| 4 | 316011912 | Burner Box, Black |
|
- | |||||
| 5 | 5303288460 | Nut, T,type, Leveling Screw (not Illustrated) |
|
$ 27.14 | |||||
| 5 | 316116000 | Screw, Anti, Tip, (4) (not-illustrated) (Replaces: 316078600) |
|
$ 12.89 | |||||
| 5 | 5303203397 | Screw-leveling |
|
$ 14.49 | |||||
| 6 | 5304531722 | Rack-oven (Replaces: 316067901) |
|
Immediately | $ 51.05 | ||||
| 7 | 3203010 | Clip, Hinge, (4) (not Illustrated) (Replaces: 5303012323) |
|
$ 14.89 | |||||
| 7 | 316007001 | Hinge,oven Door ,(2) |
|
$ 234.55 | |||||
| 8 | 316064600 | Support, Oven Bottom (not-illustrated) |
|
$ 18.95 | |||||
| 8 | 5303212540 | Panel-oven Bottom |
|
- | |||||
| 14 | 3014073 | Socket-light/lamp, Oven |
|
- | |||||
| 15 | 40A15 | Light Bulb/lamp (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 21 | 3014099 | Spacer-bodyside, (8) |
|
$ 3.62 | |||||
| 27 | 5303284616 | Clip-thermo Bulb |
|
$ 9.86 | |||||
| 28 | 3011813 | Clip-wire |
|
$ 14.79 | |||||
| 30 | 316059200 | Bracket-main Top, Rh |
|
- | |||||
| 30 | 316059201 | Bracket-main Top, Lh |
|
- | |||||
| 33 | 316055601 | Shield-spark Module |
|
- | |||||
| 34 | 3018607 | Cover Plate |
|
$ 10.50 | |||||
| 35 | 08067965 | Gasket-flue |
|
- | |||||
| 36 | 5303273108 | Flue |
|
- | |||||
| 39 | 08067961 | Fastener-power Cord |
|
- | |||||
| 39 | 5304534377 | Cord-electric Power (Replaces: 3202006) |
|
$ 26.85 | |||||
| 41 | 3131570 | Cover Hinge Cutout |
|
$ 7.35 | |||||
| 43 | 316282700 | Screw-oven Bottom, 8-18 X 1.438 (Replaces: 3131732) |
|
$ 9.93 | |||||
| 49 | 3205821 | Clip-spring Mtg (Replaces: 3051124) |
|
Immediately | $ 35.44 | ||||
| 54 | 3009290 | Housing-oven Light |
|
- | |||||
| 55 | 5303273110 | Shield-flue |
|
- | |||||
| 58 | 3017142 | Insulation, Oven Wrapper |
|
$ 193.50 | |||||
| 58 | 3203541 | Insulation, Oven Back |
|
- | |||||
| 60 | 5303015372 | Cover-oven Front |
|
- | |||||
| 73 | 5303281627 | Base-broiler |
|
- | |||||
| 93 | 316055501 | Shield, Igntr Connector |
|
- | |||||
| *59284 | 08067962 | Fastener-wire |
|
- | |||||
| *59285 | 316519700 | Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl (Replaces: 316021108) |
|
$ 10.02 | |||||
| *59286 | 316001216 | Harness-wiring, Main |
|
- |
