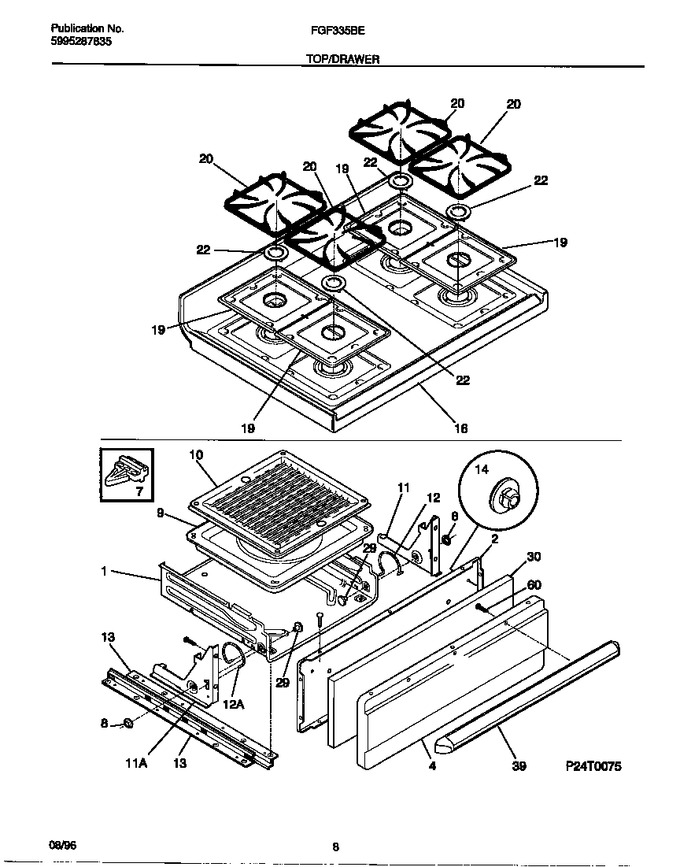

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018608		Drawer-broiler		Appelez-nous	-
2	3202803		Liner, Broiler Door		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
7	3018610		Glide-broiler				$ 29.40
8	3131386		Nut, Push-on, (2)		Appelez-nous	-
9	5303013568		Pan-broiler		Appelez-nous	-
10	5303131356		Insert-broiler Pan		Appelez-nous	-
11	316066300		Bracket-hinge, Broiler Lh, (4)		Appelez-nous	-
11	316066301		Bracket-hinge, Broiler Rh		Appelez-nous	-
12	3018618		Spring-broiler, Lh		Appelez-nous	-
12	3018619		Spring-broiler, Rh		Appelez-nous	-
13	3131153		Channel-broiler		Appelez-nous	-
14	3206216		Plug-button, Glide		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16	316077401		Shield-maintop, (2) (not Illustrated)		Appelez-nous	-
16	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-
16	5303307709		Main Top, White		Appelez-nous	-
19	316011415		Pan-burner, Black, Small				$ 53.60
19	316011419		Pan-burner, Black, Large				$ 102.90
20	316025400		Grate, (4)		Appelez-nous	-
22	316011008		Cap-burner, Black, Large, (2)		Appelez-nous	-
22	316011001		Cap-burner, Black, Small, (2)		Appelez-nous	-
29	3018614		Pin-hinge		Appelez-nous	-
30	5303131258		Insulation, Broiler Drawer		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
60	316089500		Screw-drawer Handle, 10-16 X .486, (2)				$ 13.46
*59287	316519700		Screw, Cup Pt, 8-18 X 3/8, Manifold Pnl   (Replaces: 316021108)				$ 10.02
*59288	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
*59289	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*59290	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
